- Type:Filling Machine
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Application:Beverage
- Packaging Type:CANS
- Packaging Type:Bottles
- Packaging Material:plastic
- Packaging Material:Glass
- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:2 years
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:Multifunctional
- Machinery Capacity:4000BPH
- Filling Material:Water
- Place of Origin:CN;JIA
- Voltage:220V, 380V, customized
- Brand Name:Sunswell
- Dimension(L*W*H):2200X2100X2200MM
- Weight:2500kg
- Certification:CE
- After-sales Service Provided:Engineers
- Filling material:Edible/Ketchup

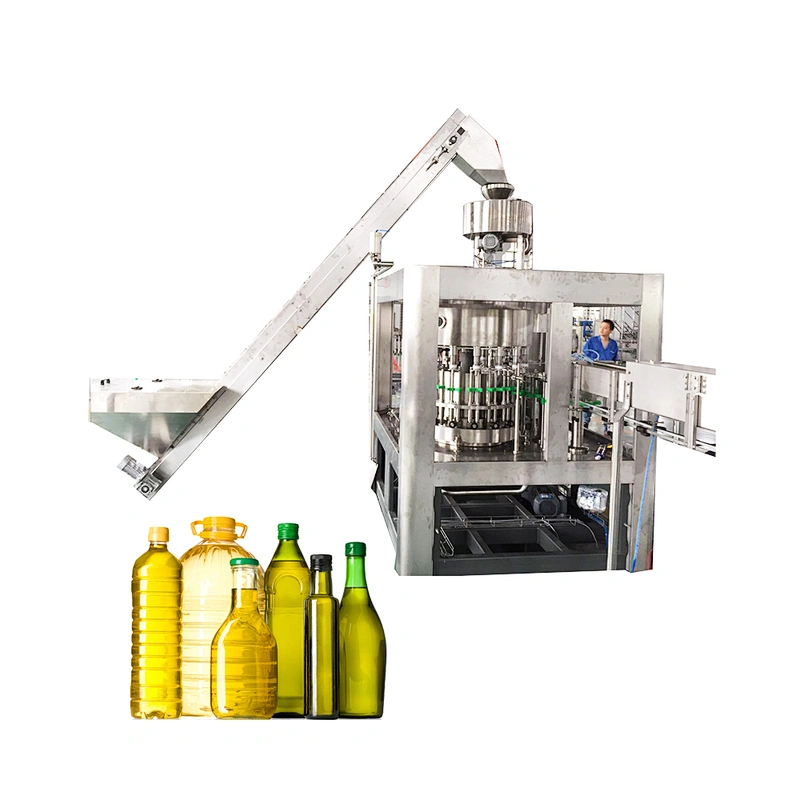

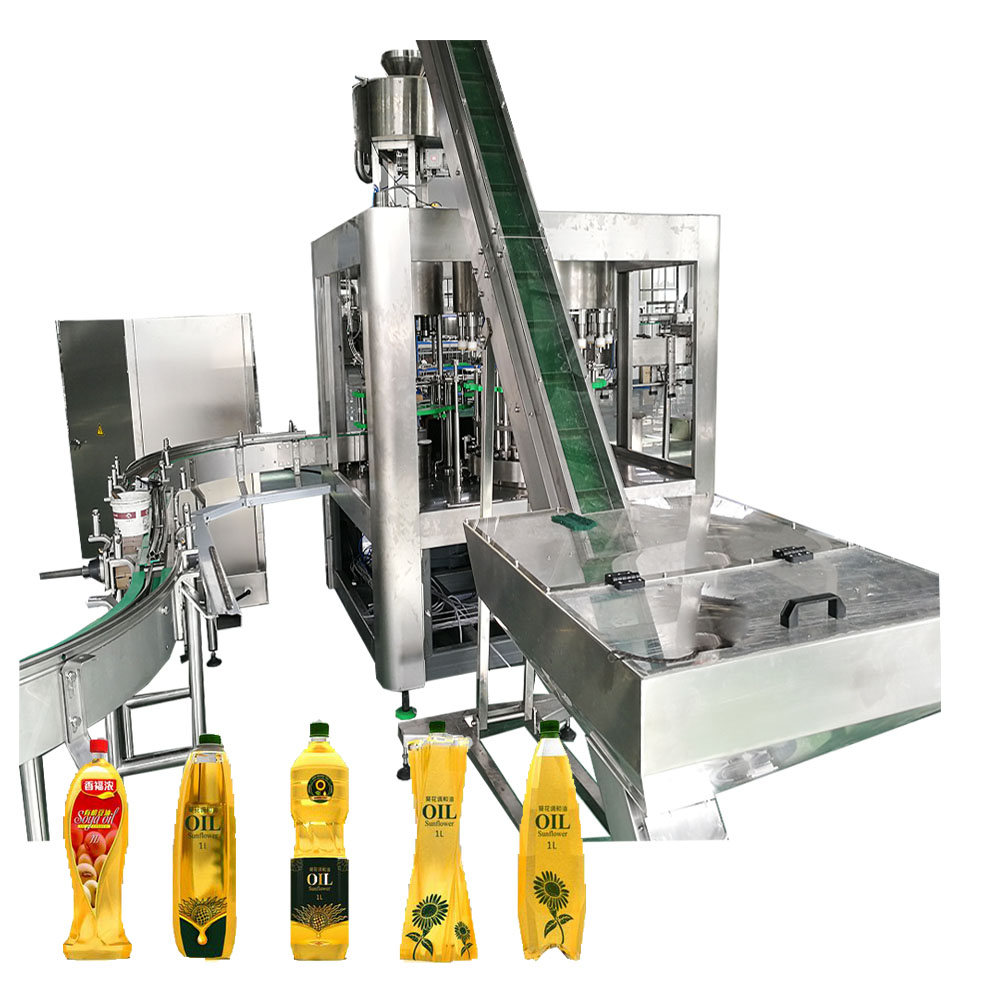

- Product name:Edible Oil filling machine
- Production capacity:2000~20000BPH
- Filling Volume:330-2250ml
- Automatic Grade::Automatic
- suitable bottle:50-110
- Voltage:220V, 380V, customized
- Filling Accuracy:±2%
- Certification::CE, ISO, SGS
Products Description
High speed
Weighing filler
Wide appilication for different bottle sizes

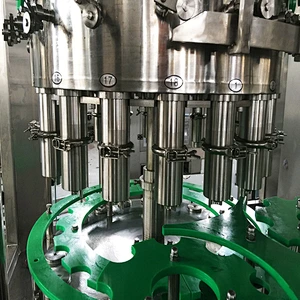

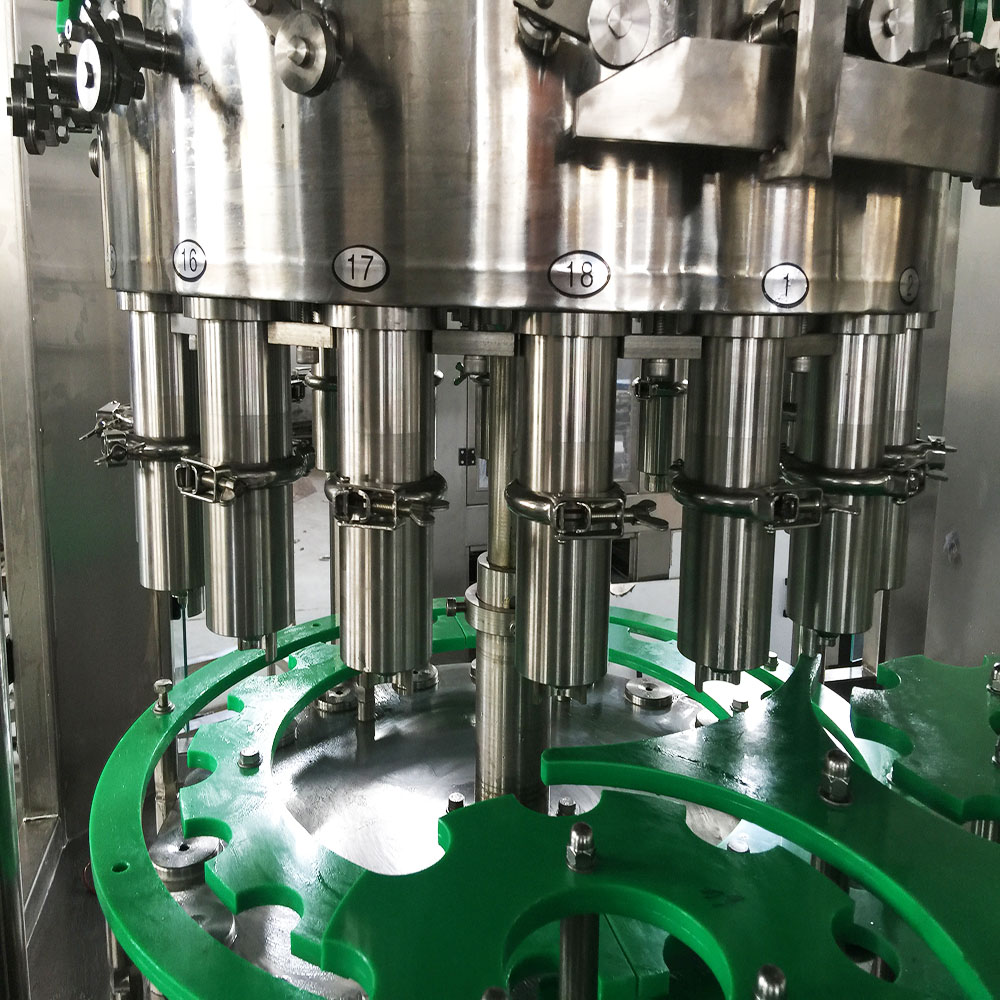

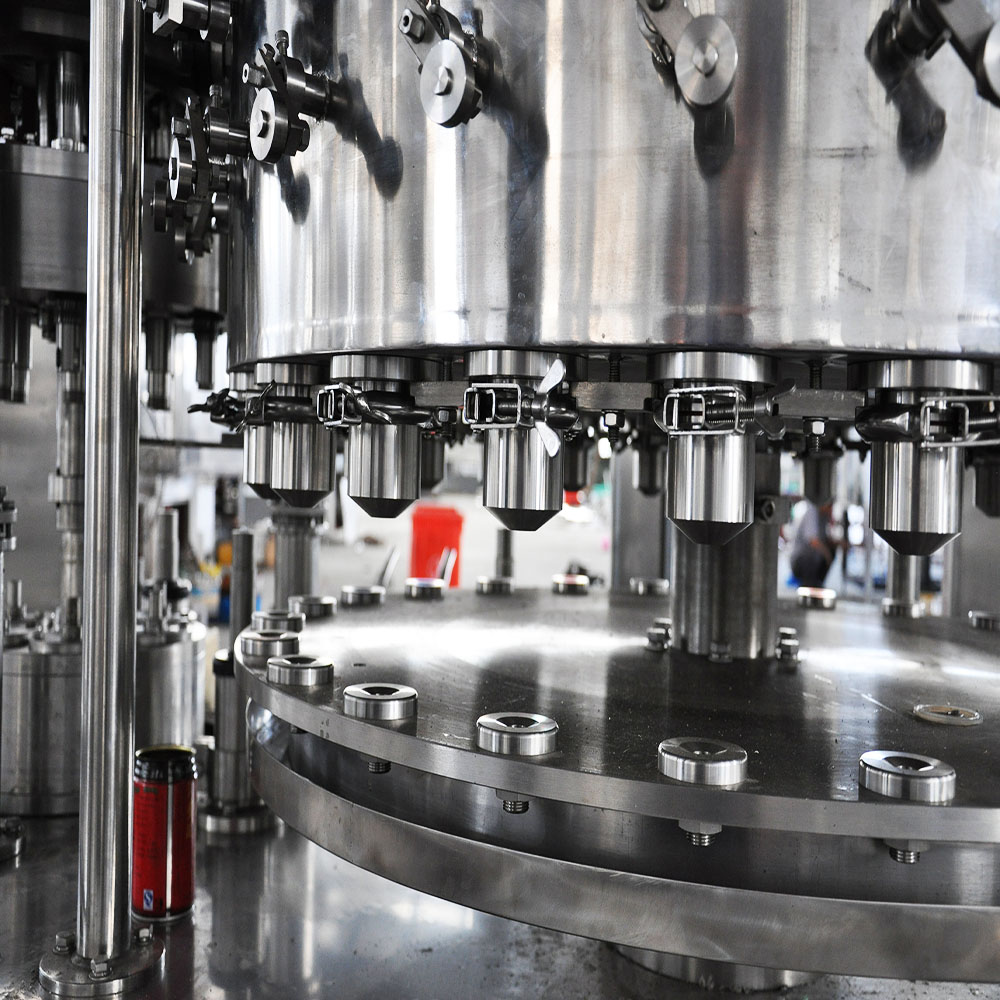

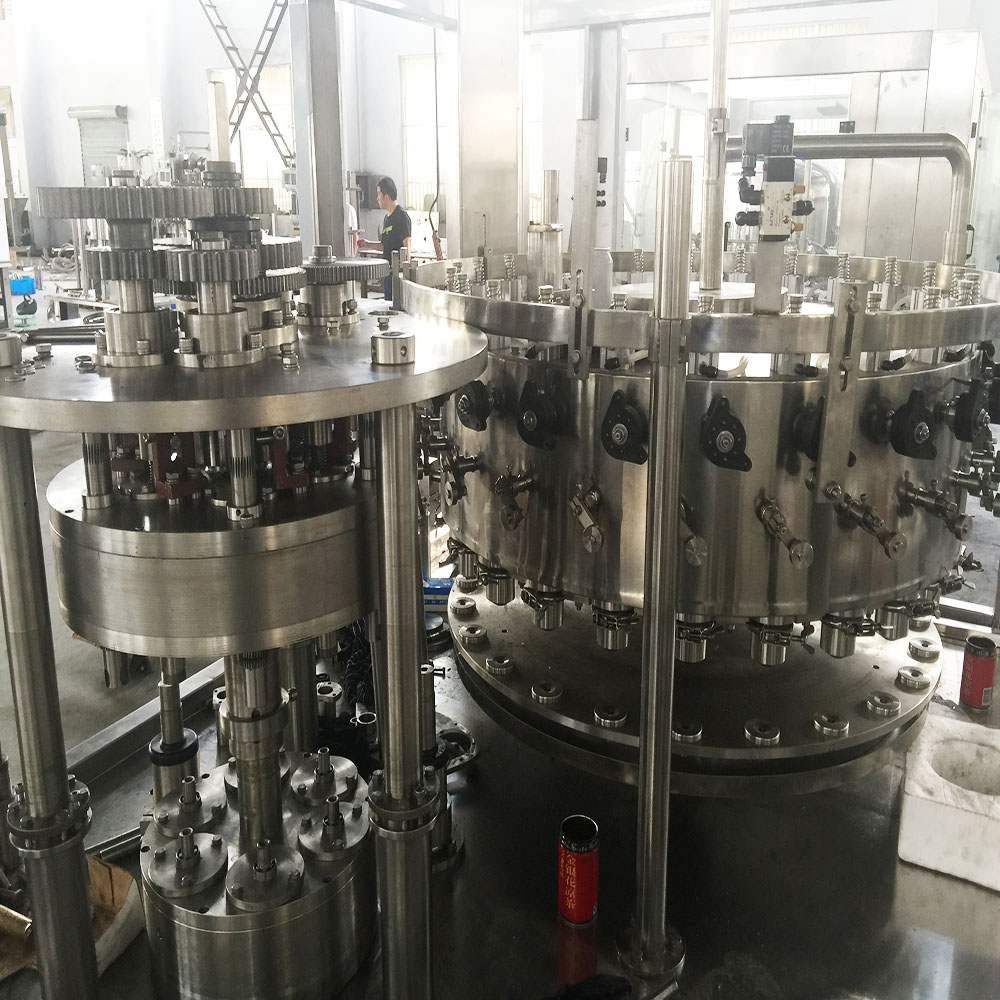

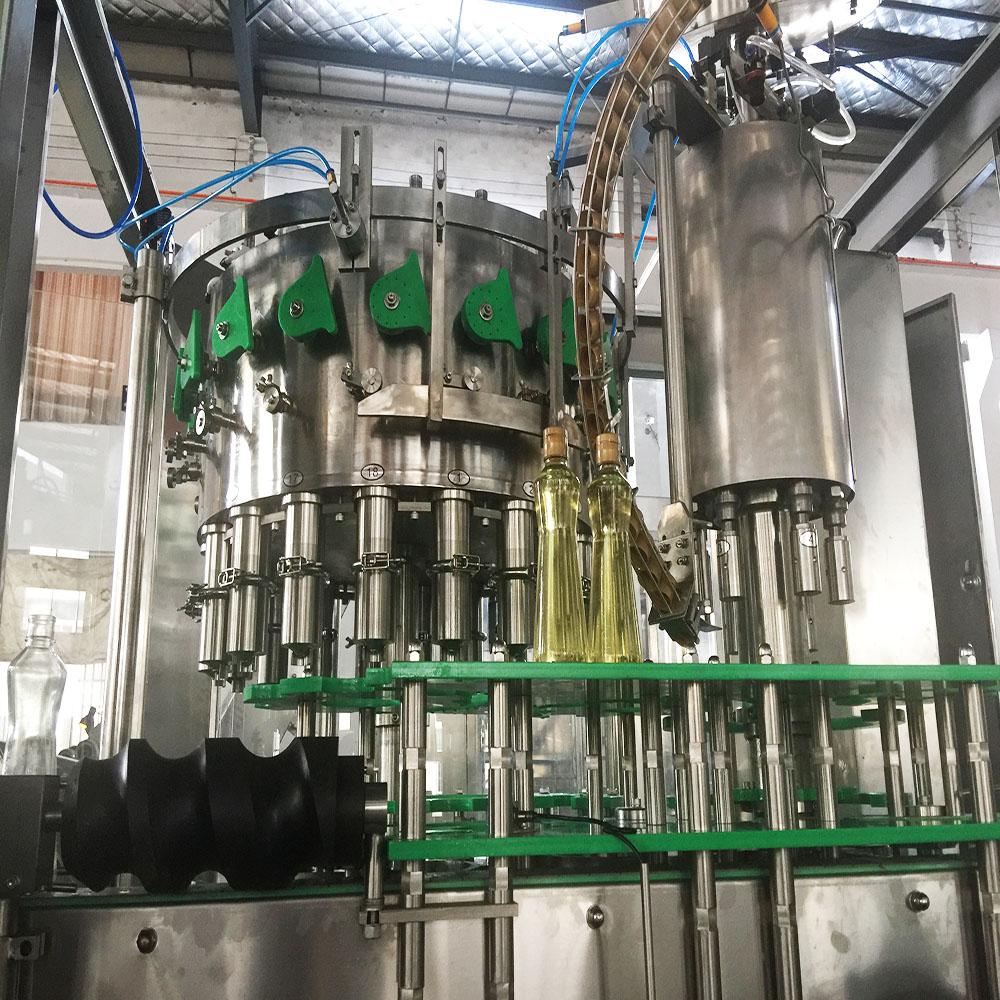

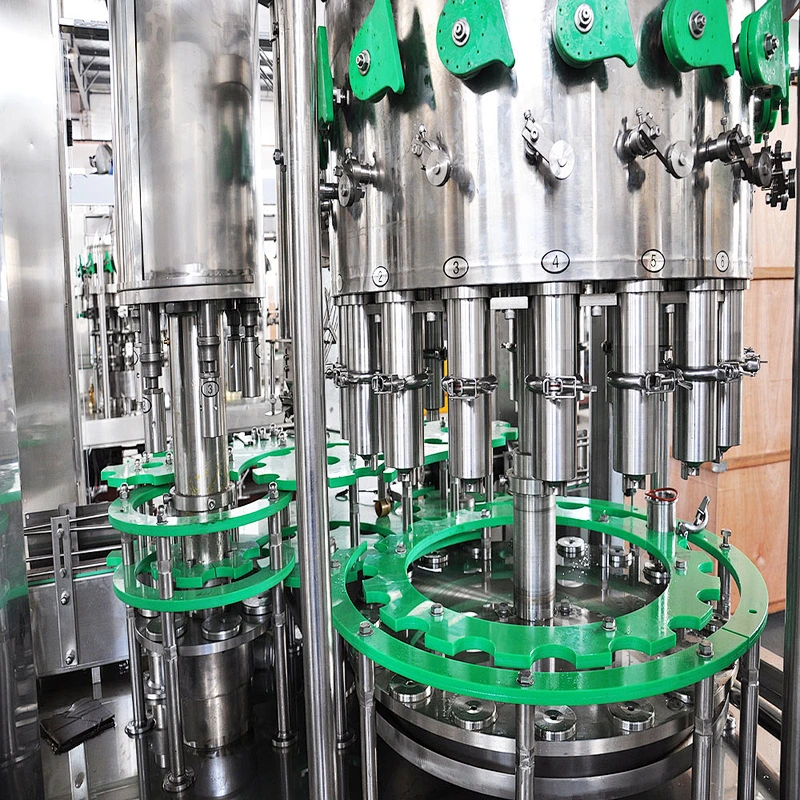

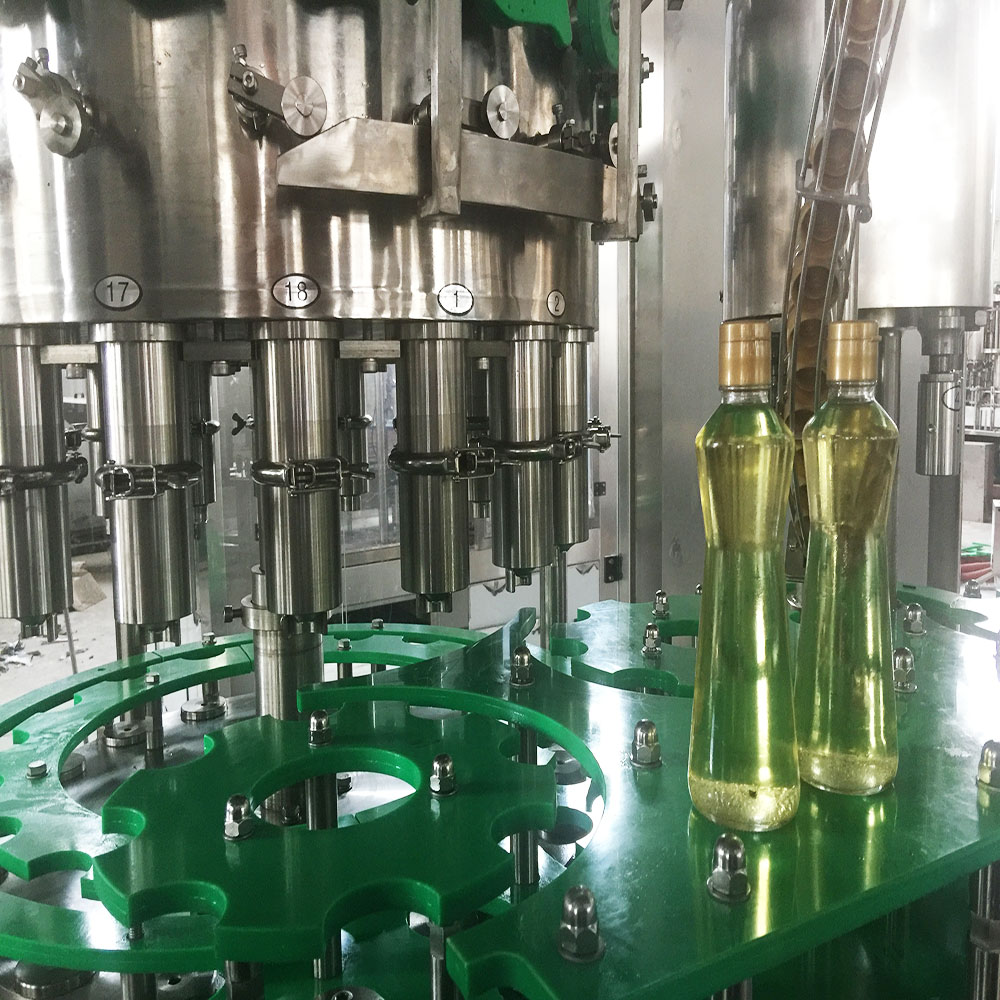

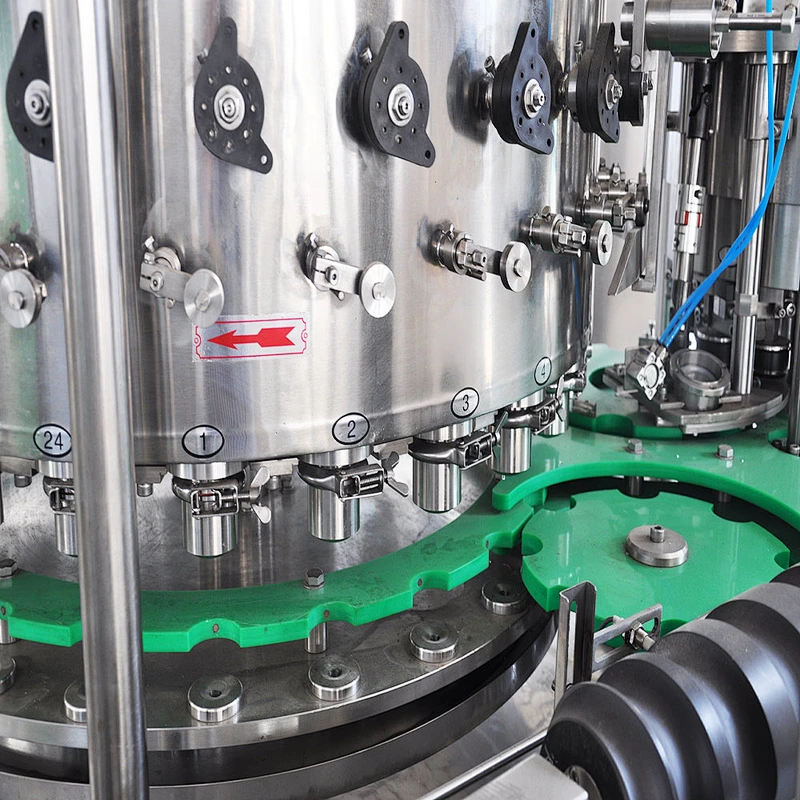

Detailed Image:
1. General Descriptions
Empty bottles are transferred by variable pitch screw and star-wheels to bottle supports of filling station. There are weighting
sensors installed on the bottle supports which are well protected. After automatic peeling is empty bottle inspection and slanting
bottle inspection, start to slow filling, then switch to normal filling. It will be switched slow filling when liquid level is
approaching determined position, finally the sensor will send signal to stop filling when reach the determined weight. Reset the
weighting sensor after bottles leave the bottle support for the following filling, filled bottle will be conveyed to capper by
transition star-wheel. Capper is equipped with cap elevator and unscrambler, sorted caps will be conveyed by cap chute to cap
feed-in plate where the caps will be captured by capper for capping. Capped bottle will be conveyed to conveying chain for
following process.
2. Main Features
1. Compact structure, complete control system, easy operation, highly-automatically, can deal with bottle missing, bottle jamming,
bottle blocking automatically. Filling will be stopped when no bottle fed in, failed filling valve will not be fed bottle and cap.
2. Frame adopts welding structure and oil trap for the convenience of collection and discharge of pollution which meet the
sanitary filling requirements.
3. It adopts variable pitch screw and bottle supporting conveyor. It can realize fast bottle size change after changing few parts.
Bottle support plate adopt flexible structure to avoid to cause damage to weighting sensor in some extreme case. Meanwhile crooked
bottle detection is adopted to stop filling when the bottle is not put on the right position.
4. Height of filler and capper are adjustable for easy operation.
5. Machine adopts structure design features corrosion resistance, long life and free from lubrication to save operation cost.
Parts which in contact with products adopt excellent stainless steel to avoid dead corner.
6. It adopts weighting filling, weight sensors mounted on the filling stations will send signal to filling valve to stop filling
when it has reached the determined weight.
7. Filling valves adopt two-pass cylinder to realize slow-fast-slow filling which can reach high filling accuracy. Manual sanitary
butterfly valves are equipped on each filling valves for the convenience of detection and maintenance.
8. There is protection mechanism for weighting sensor to avoid being damage
9. It equipped with drainage recycling device for the convenience of changing products, and drain to specified position.
10. It will alarm if the bottle size not big enough during filling.

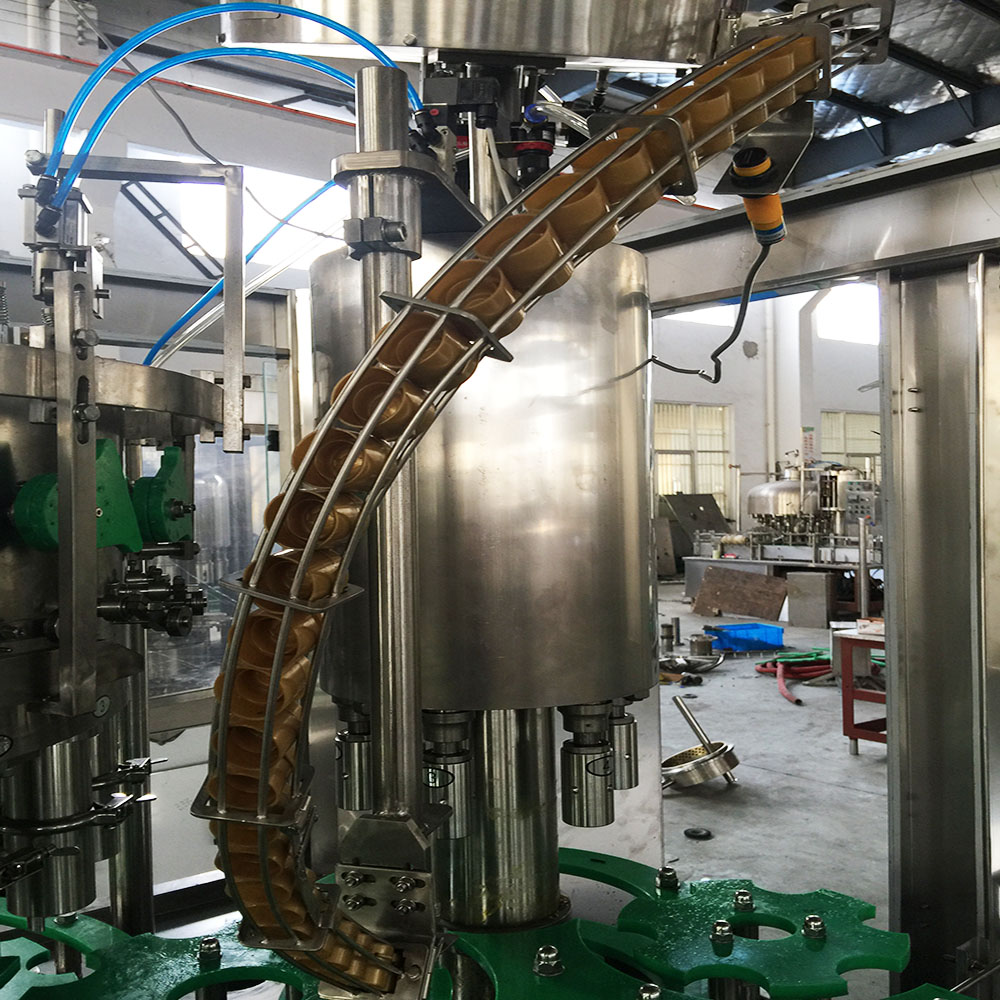

11. Cap unscrambler can sort caps to be in order, detection devices are installed on cap hopper and cap chute for realizing
auto-control for cap missing and cap full.
12. Overload protection is installed on bottle feed-in and feed-out star-wheel to ensure safe operation. Some other protection
device like safe gates are installed.
13. It equipped with imported SKF centralized grease lubrication device to lubricate it periodically by injecting grease.
14. It adopts touch screen to realize human-machine conversation, operation status of equipments are shown on screen clearly.
Empty bottles are transferred by variable pitch screw and star-wheels to bottle supports of filling station. There are weighting
sensors installed on the bottle supports which are well protected. After automatic peeling is empty bottle inspection and slanting
bottle inspection, start to slow filling, then switch to normal filling. It will be switched slow filling when liquid level is
approaching determined position, finally the sensor will send signal to stop filling when reach the determined weight. Reset the
weighting sensor after bottles leave the bottle support for the following filling, filled bottle will be conveyed to capper by
transition star-wheel. Capper is equipped with cap elevator and unscrambler, sorted caps will be conveyed by cap chute to cap
feed-in plate where the caps will be captured by capper for capping. Capped bottle will be conveyed to conveying chain for
following process.
2. Main Features
1. Compact structure, complete control system, easy operation, highly-automatically, can deal with bottle missing, bottle jamming,
bottle blocking automatically. Filling will be stopped when no bottle fed in, failed filling valve will not be fed bottle and cap.
2. Frame adopts welding structure and oil trap for the convenience of collection and discharge of pollution which meet the
sanitary filling requirements.
3. It adopts variable pitch screw and bottle supporting conveyor. It can realize fast bottle size change after changing few parts.
Bottle support plate adopt flexible structure to avoid to cause damage to weighting sensor in some extreme case. Meanwhile crooked
bottle detection is adopted to stop filling when the bottle is not put on the right position.
4. Height of filler and capper are adjustable for easy operation.
5. Machine adopts structure design features corrosion resistance, long life and free from lubrication to save operation cost.
Parts which in contact with products adopt excellent stainless steel to avoid dead corner.
6. It adopts weighting filling, weight sensors mounted on the filling stations will send signal to filling valve to stop filling
when it has reached the determined weight.
7. Filling valves adopt two-pass cylinder to realize slow-fast-slow filling which can reach high filling accuracy. Manual sanitary
butterfly valves are equipped on each filling valves for the convenience of detection and maintenance.
8. There is protection mechanism for weighting sensor to avoid being damage
9. It equipped with drainage recycling device for the convenience of changing products, and drain to specified position.
10. It will alarm if the bottle size not big enough during filling.
11. Cap unscrambler can sort caps to be in order, detection devices are installed on cap hopper and cap chute for realizing
auto-control for cap missing and cap full.
12. Overload protection is installed on bottle feed-in and feed-out star-wheel to ensure safe operation. Some other protection
device like safe gates are installed.
13. It equipped with imported SKF centralized grease lubrication device to lubricate it periodically by injecting grease.
14. It adopts touch screen to realize human-machine conversation, operation status of equipments are shown on screen clearly.

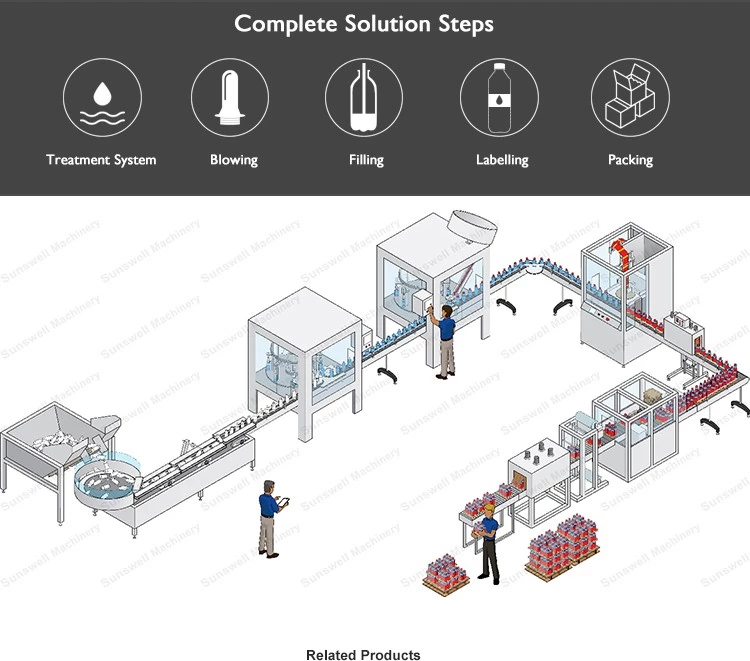

Blowing / Filling / Combi / Labelling / Container Treatment & Cleaning / Conveying Systems / Packing / Palletising
1. CSD system
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine
( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )
Company Profile
Any more questions, please feel free tocontact us!
Any more questions, please feel free to contact us!
Related Products

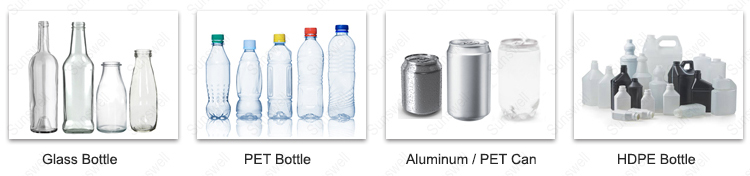

3. Different packaging forms
Any more questions, pls feel free to contact me!
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
