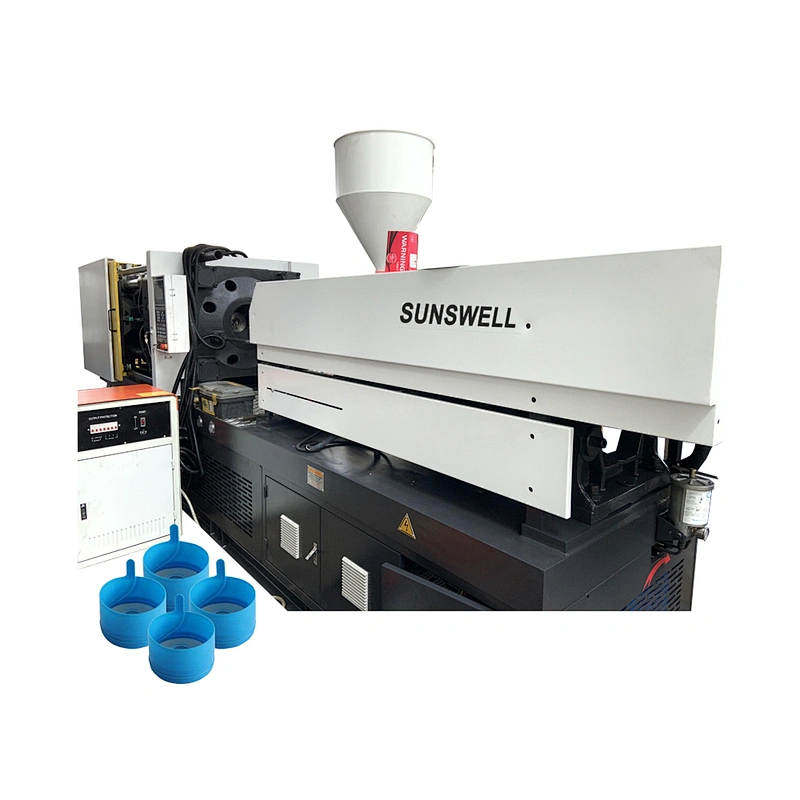

- Product name:Preform/Cap Injection Molding Machine
- Max Injection pressure(kg/cm2):1760
- Screw torque(N.m):2530
- Heating power(kw):22
- Function:Making bottle prefoms and caps
- Raw material:PET/HDPE/LDPE
- Cavity:8/16/24/32 etc.
- Voltage:220~480V/50~60Hz
- Language:English
- Packing size(m):6.7*1.75*2.25
- Plastic Processed:PP
- Plastic Processed:PET
- Plastic Processed:HDPE
- Plastic Processed:LDPE
- Plastic Processed:HDPE/PP
- Plastic Processed:PE/PP
- Condition:New
- Ejector Number:13
- Machine Type:Hydraulic
- Type:Preform Injection
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Key Selling Points:Long Service Life
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Marketing Type:Ordinary Product
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:PLC
- Core Components:Screw
- Place of Origin:CN;JIA
- Style:Horizontal
- Distance between Tie Bars(Width)(mm):610mm
- Distance between Tie Bars(Height)(mm):610mm
- Clamping Force (kN):300
- Plasticizing Capacity(g/s):71.4
- Mold Height(mm):220 - 630 mm
- Ejector Stroke(mm):155
- Ejector Force(kN):70.6
- Theoretical Shot Volume(cm³):1758
- Injection Rate (g/s):484
- Injection Weight (g):905
- Screw Speed (rpm):1 - 150 rpm
- Screw diameter (mm):65
- Screw L/D Ratio:21
- Distance between Tie Bars:610x610 mm
- Weight (KG):11000
- Open Stroke(mm):590

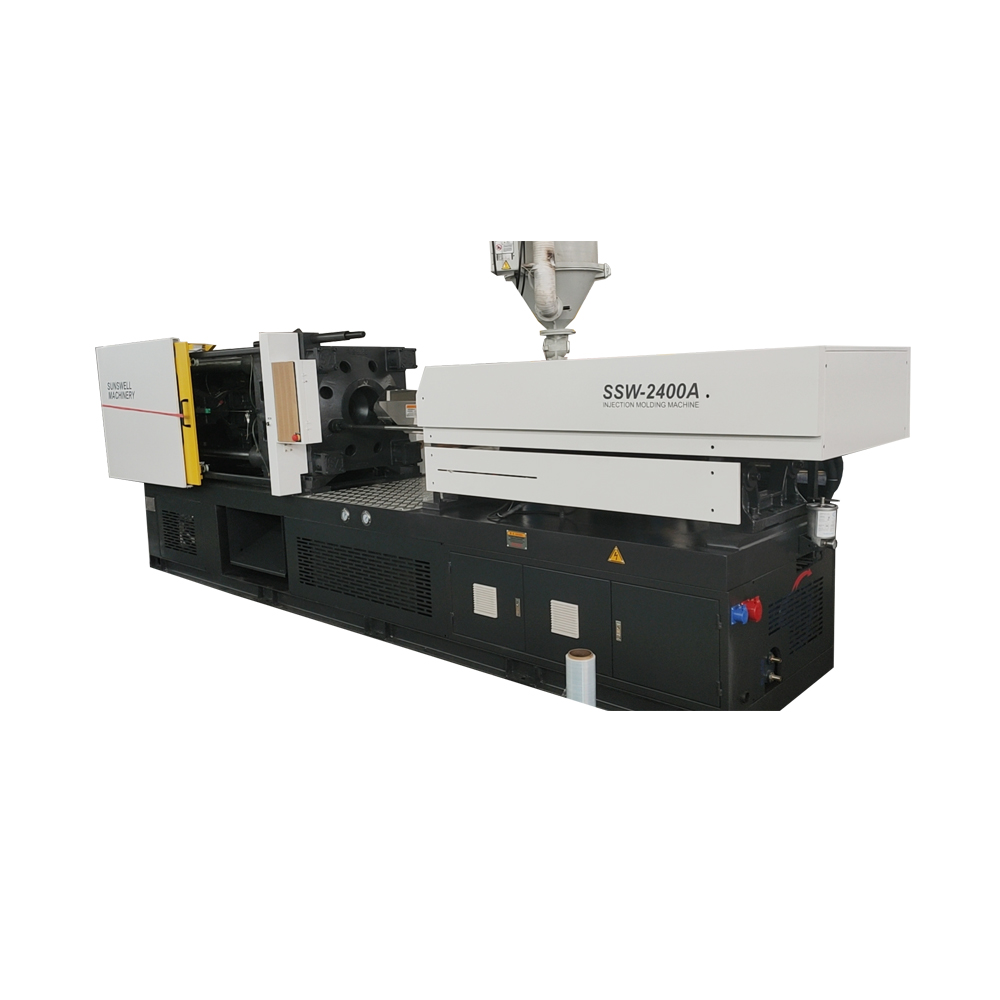

- Model Number:SSW-2400A
- Brand Name:SUNSWELL
- Certification:CE, ISO
- Power (kW):30
Products Description

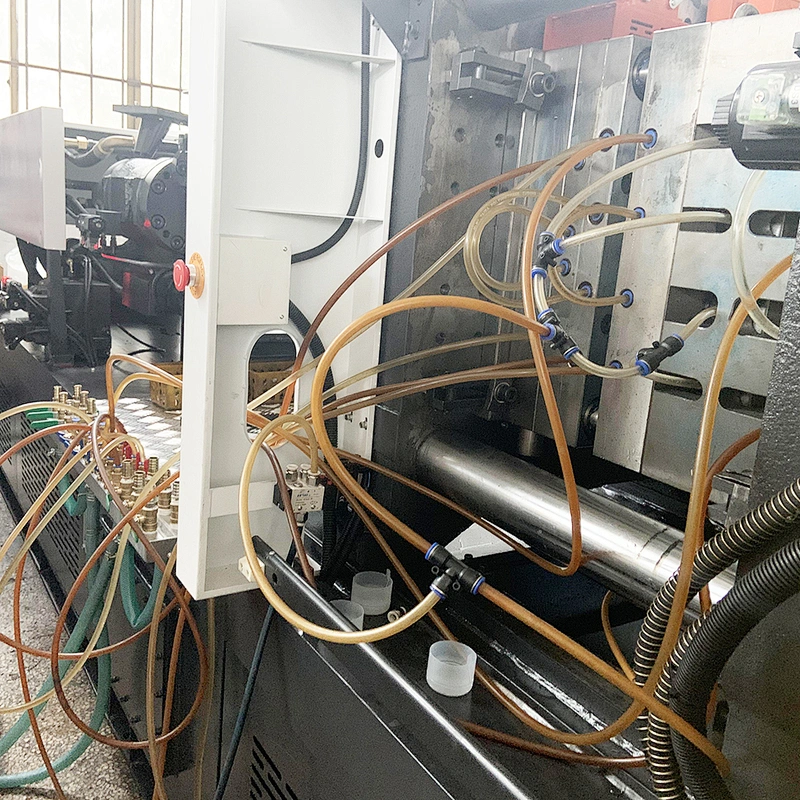

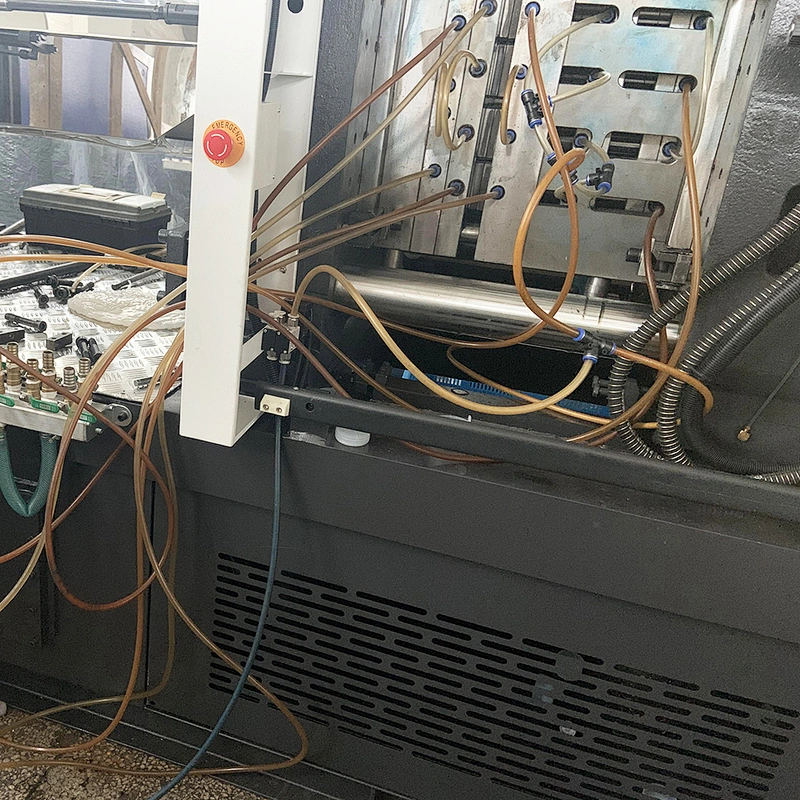

Injection Molding Machine
Injection molding machine is widely used to produce preforms, caps and other kinds of plastics.
Features:

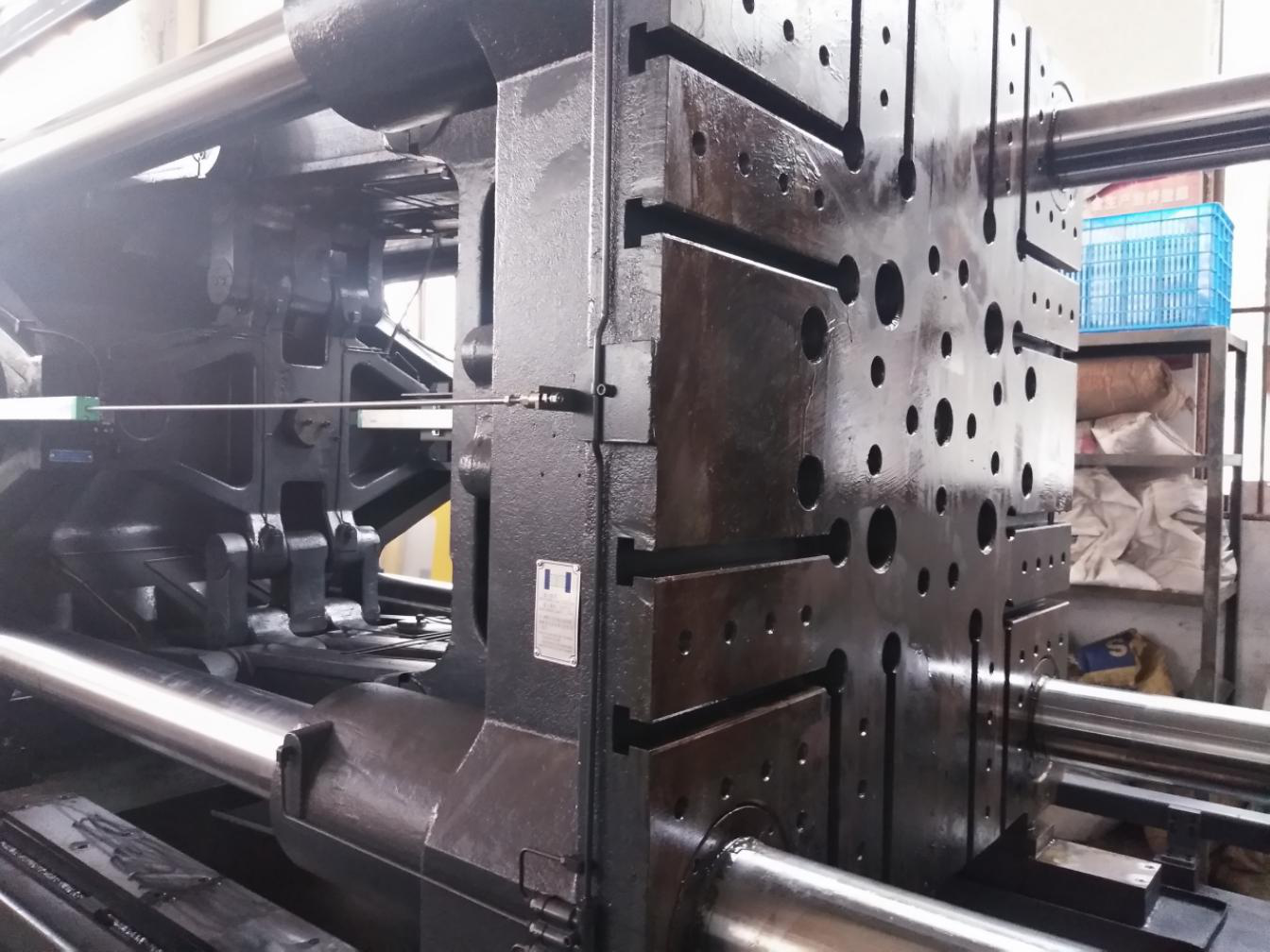

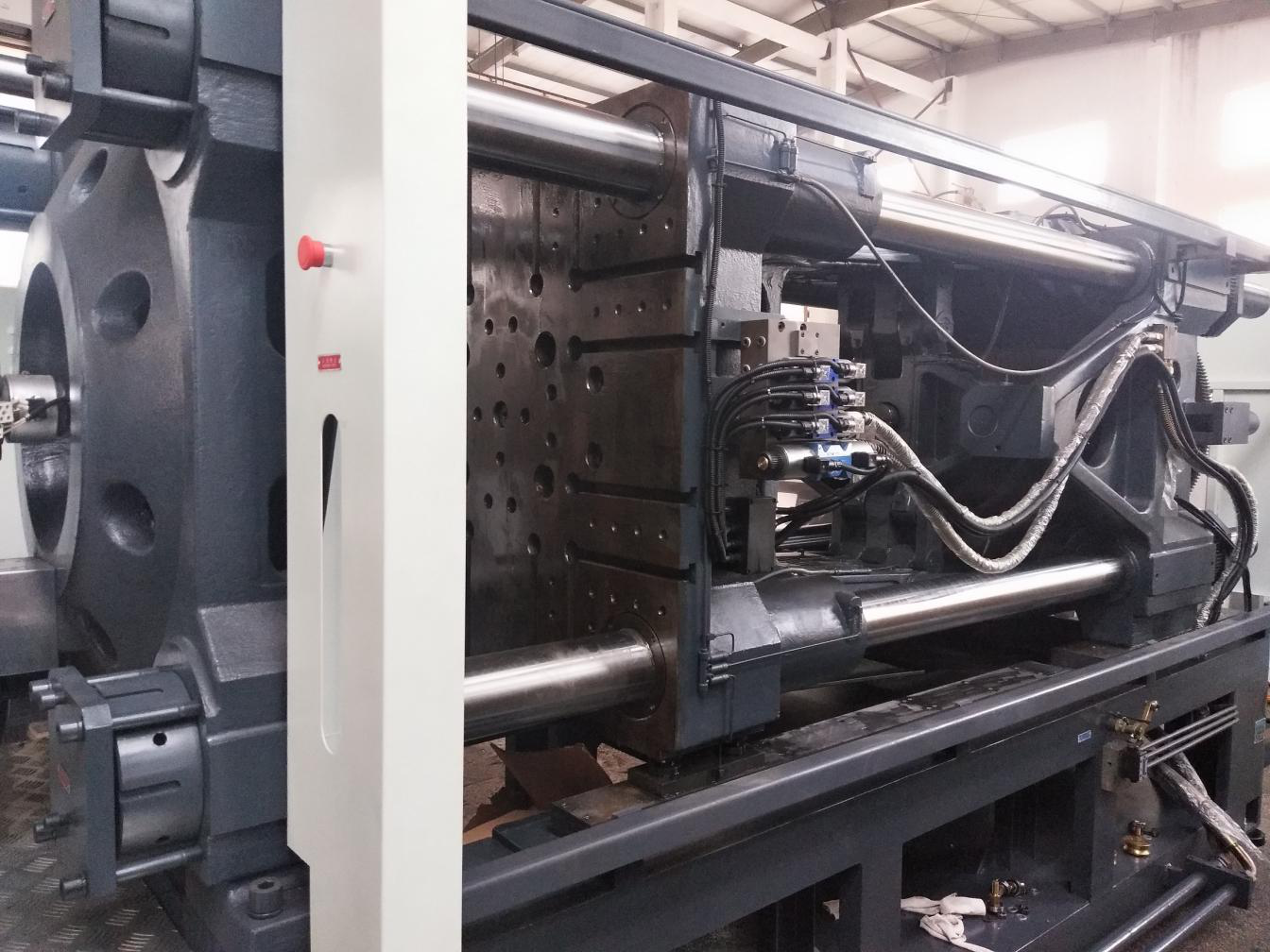

1. Clamping Unit
1) New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2) High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3) Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
4) Wear-resistant guide for moving platen
5) Transducer control clamping stroke
6) Many step control for speed and pressure of clamping and opening
7) Ejection device offer dwell, single, more, vibration function
8) Differential high speed clamping
9) Low pressure mold protection function
10) Hydraulic mold height adjustment drived by gear with rough and fine operation
11) Mechanical and electrical dual safety interlock
12) Automatic centralized lubrication system with far pressure detector
3) Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
4) Wear-resistant guide for moving platen
5) Transducer control clamping stroke
6) Many step control for speed and pressure of clamping and opening
7) Ejection device offer dwell, single, more, vibration function
8) Differential high speed clamping
9) Low pressure mold protection function
10) Hydraulic mold height adjustment drived by gear with rough and fine operation
11) Mechanical and electrical dual safety interlock
12) Automatic centralized lubrication system with far pressure detector

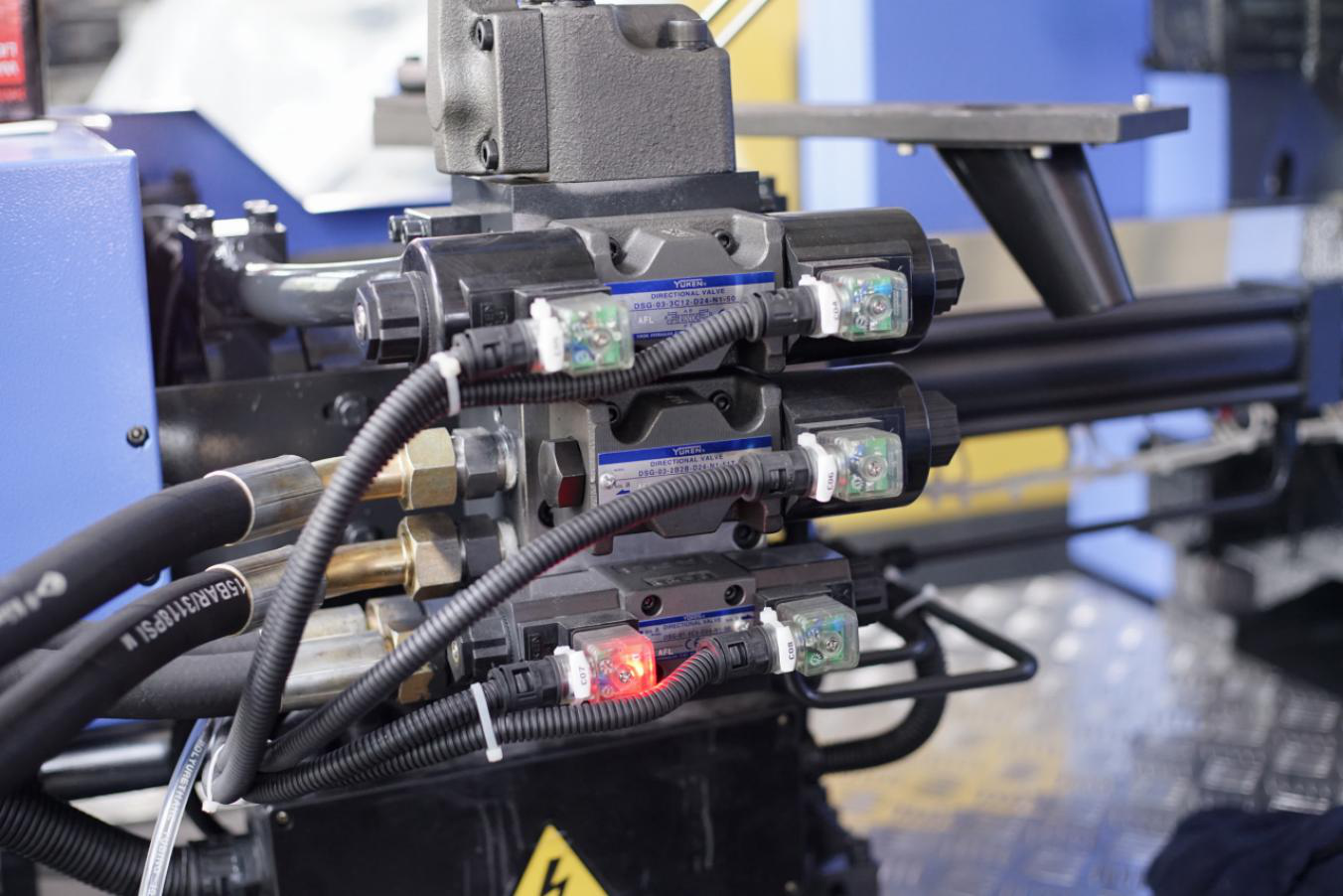

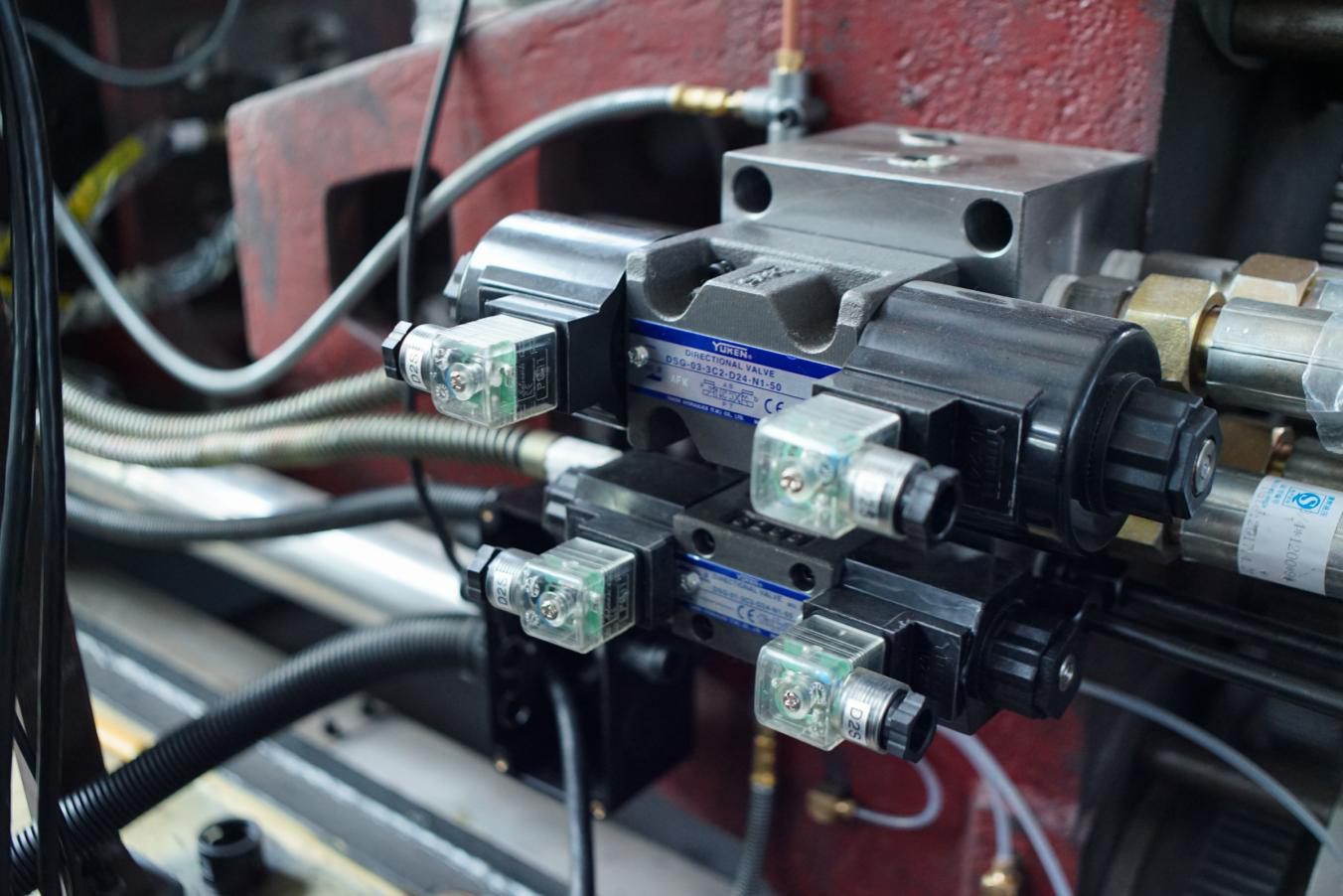

2. Hydraulic Unit
1) Proportional pressure and flow control with the advantage of fine adjustment and high precision
2) Know-how manifold design, compact, reasonable and fast respond
3) Imported world famous hydraulic valves
4) Imported world famous hydraulic sealing rings
5) Imported technology hydraulic hose and fittings
6) Low noise hydraulic system
7) Oil tank with inner stainless steel container
8) Precision oil filter
9) Oil cooler
3) Imported world famous hydraulic valves
4) Imported world famous hydraulic sealing rings
5) Imported technology hydraulic hose and fittings
6) Low noise hydraulic system
7) Oil tank with inner stainless steel container
8) Precision oil filter
9) Oil cooler

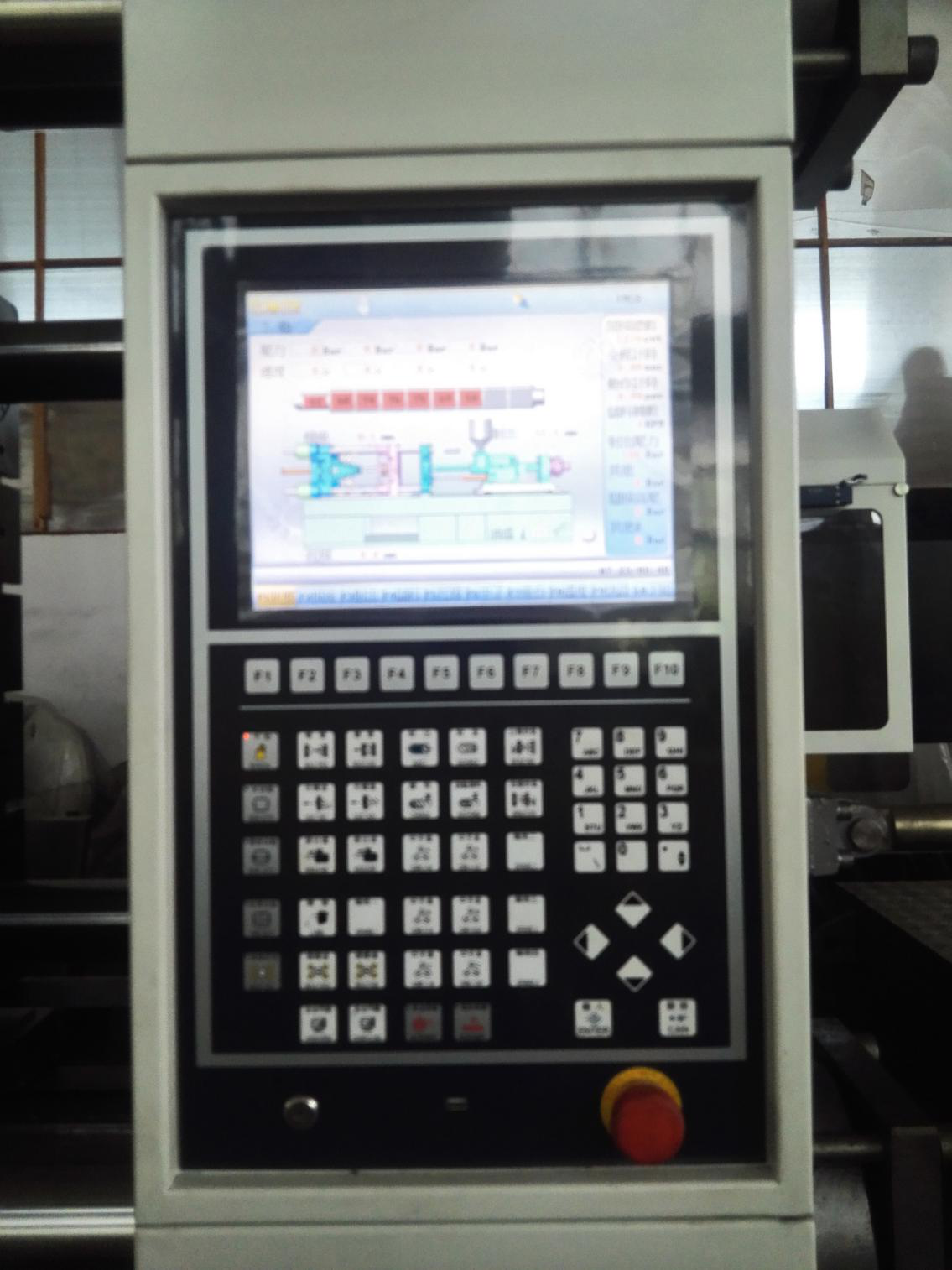

3. Control Unit
1) The computer is imported from industry family. The LCD displaying screen with high clarity has Chinese and English language to display
2) World famous electrical components.
3) Close-loop PID temperature control with the advantage of high precision
4) Deviation preset between high and low temperature. And break control for temperature sensor
5) Alarming system in case of cold start and no material in hopper
6) Transducer control the injection and opening stroke to accuracy of ±0.05mm
7) 99 steps speed control for increasing and reducing to suit for different technology demands
8) Self-diagnostic and trouble alarm function
9) Parameters lock function to avoid being changed
10) 100 sets of production parameters can be stored into the computer memorial software
11) Machine can record the quantity of products and automatically stop if up to the required quantity
12) Emergency stop device
13) Alarm lamp
3) Close-loop PID temperature control with the advantage of high precision
4) Deviation preset between high and low temperature. And break control for temperature sensor
5) Alarming system in case of cold start and no material in hopper
6) Transducer control the injection and opening stroke to accuracy of ±0.05mm
7) 99 steps speed control for increasing and reducing to suit for different technology demands
8) Self-diagnostic and trouble alarm function
9) Parameters lock function to avoid being changed
10) 100 sets of production parameters can be stored into the computer memorial software
11) Machine can record the quantity of products and automatically stop if up to the required quantity
12) Emergency stop device
13) Alarm lamp
Any more questions, pls feel free to contact us !
Company Profile
Maldives
Water Production Line Combiblock
（330/500/1500ml)
USA
Carbonated Water Filling Line
20000BPH
Syria
Carbonated Drink Filling Line
24 000 Cans Per Hour
RelatedProducts
Sunswell Complete Bottling Lines: Bottling, Labeling, Packaging & Processing
1 Treatment System
2 Bolw Molding Machine
3 Filling Machine
4 Labelling Machine
5 Packaging System
Blowing-filling-capping CombiBlock
Different packaging forms
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and
packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to
save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and
packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to
save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
Any more questions, pls feel free to contact us !
