- Type:Packaging Line
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Application:Beverage
- Packaging Type:Cartons
- Packaging Type:CANS
- Packaging Type:Bottles
- Packaging Type:case
- Packaging Material:Paper
- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:1 Year
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- Key Selling Points:Easy to Operate
- Place of Origin:CN;JIA
- Voltage:110V, 220V, 380V, customized
- Brand Name:Sunswell
- Dimension(L*W*H):4500*800*2050 mm
- Weight:1550kg
- Certification:CE, ISO
Products Description
Voltage: 380V(± 10%max) 50Hz 3PH+PE.
For non-380V voltages, can provide an autotransfo.
Control voltage: 24V DC, Schneider low voltage control system
According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
Insulating refractory cable (paint color according to the DESINA standard)
Panel button Ø30mm: Schneider
Proximity switch: Autonics South Korea
With the joint of the photoelectric tube IP67 diameter18 D
Relay connector conforming to Din50-022-35 standard
Rapid stand joints conforms to the Din50-022-35 standard
Contactor relay with the French Schneider TE/ABB
frequency converter is Taiwan Teco
main controller: Germany Siemens
Asynchronous motor: Domestic
Other electric driving device in accordance with the IEC529 standard is not less than IP54
Gear motor; China
Bearing: TR
Chain: polymer plastics
Electronic valve in accordance with ISO 505599/1/0 standard
Cylinder and its accessories: AIRTAC or SMC
The production line to set multiple fault protection and alarm and fault alarm device. All the fault alarm details are on the
touch screen to highlight, prompted the need to solve the content and the main measures. The main action mechanism is provided with an electronic detection, automatic fault correction system is provided with a mechanical motion system, also can use manual reset button, the system automatically detecting and correcting.
For non-380V voltages, can provide an autotransfo.
Control voltage: 24V DC, Schneider low voltage control system
According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is IP65
Insulating refractory cable (paint color according to the DESINA standard)
Panel button Ø30mm: Schneider
Proximity switch: Autonics South Korea
With the joint of the photoelectric tube IP67 diameter18 D
Relay connector conforming to Din50-022-35 standard
Rapid stand joints conforms to the Din50-022-35 standard
Contactor relay with the French Schneider TE/ABB
frequency converter is Taiwan Teco
main controller: Germany Siemens
Asynchronous motor: Domestic
Other electric driving device in accordance with the IEC529 standard is not less than IP54
Gear motor; China
Bearing: TR
Chain: polymer plastics
Electronic valve in accordance with ISO 505599/1/0 standard
Cylinder and its accessories: AIRTAC or SMC
The production line to set multiple fault protection and alarm and fault alarm device. All the fault alarm details are on the
touch screen to highlight, prompted the need to solve the content and the main measures. The main action mechanism is provided with an electronic detection, automatic fault correction system is provided with a mechanical motion system, also can use manual reset button, the system automatically detecting and correcting.

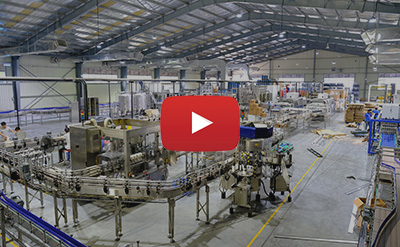

Company Profile
Any more questions, please feel free tocontact us!
Any more questions, please feel free to contact us!

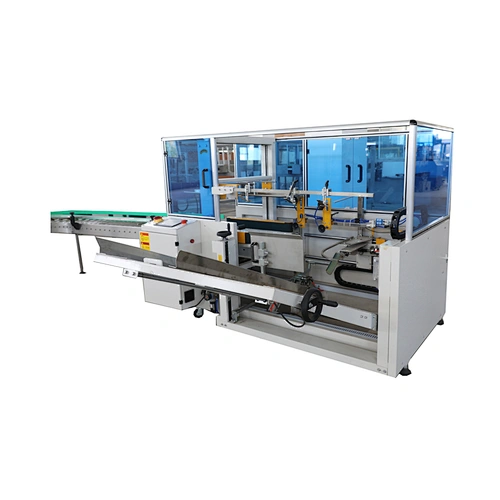

Related Products
3. Different packaging forms
Any more questions, pls feel free to contact me!
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
