- Condition:New
- Applicable Industries:Hotels
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Retail
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Warranty:2 years
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- Place of Origin:CN;JIA
- Brand Name:sunswell
- Material:standard export wooden case
- Weight:Depends on model
- Size:depend on model
- Power:Depends on model
- Warranty::1 Year
- Processing Types::Pure water
- Recovery efficiency::60%~75%
- Rejection efficiency::99.7%
- Control method::Full control or Semi control
- Security filter::Stainless steel
Product Description
Introduction:
RO system is widely used in preparation of water for beverage industry, which features adaptable of different salt content of water, easy operation, less labor force and low running cost.

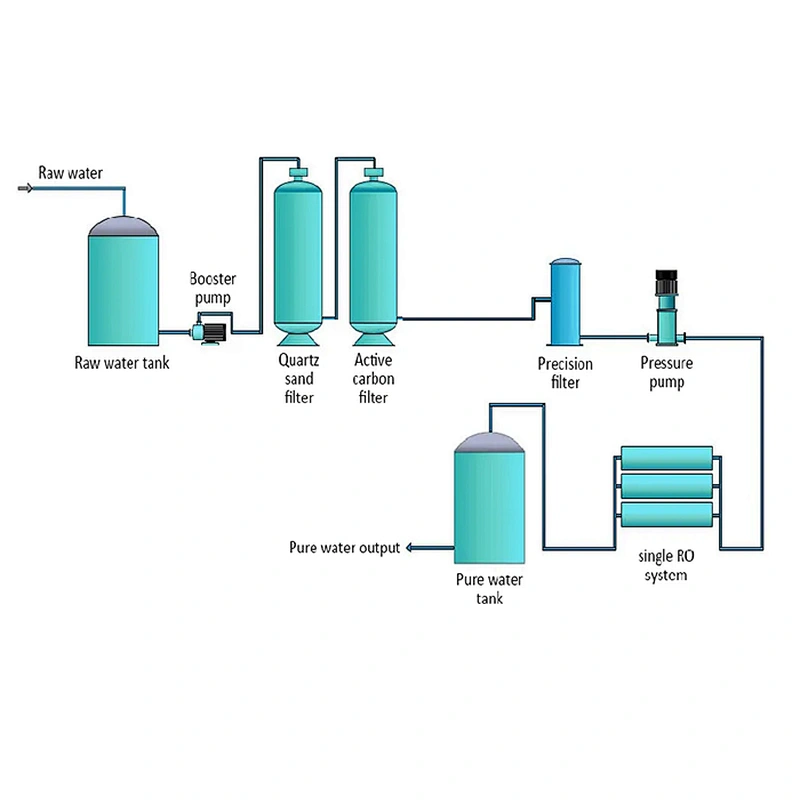

Raw Water | → | Raw Water Tank | → | Raw Water Pump | → | Mechanical Filter | → | |||||||
Active Carbon Filter | → | Ion Exchanger | → | Precision Filter | → | High-pressure Pump | → | |||||||
1-stage RO System | → | Pure Water Tank | → | Pure Water Pump | → | Final Filter | → | |||||||
distilled water equipment | ||||||||||||||

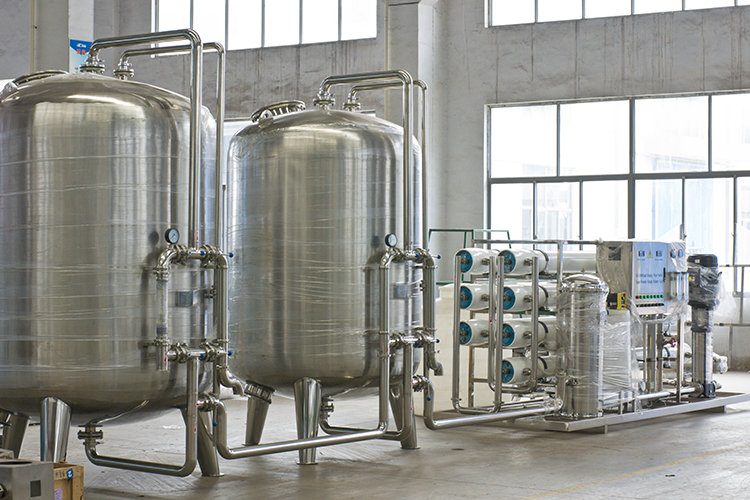

Composition of Water Treatment System:
Pre-treatment System
Pre-treatment system is composed of mechanical filter, active carbon filter, Ion Exchanger and precision filter. The water
temperature requires 25±30C.
Flocculator is used for destroying electro-neutral of colloid in water, which ensures raw water can reach to the requirement of Silt Density Index (SDI) ≤ 4. Mechanical filter can remove most of suspension, colloid and grain impurity, which can ensure initial purification of water.
If some of raw water comes from tap water, chlorine content maybe is higher. Low-pressure compound RO membrane has strict limitation to chlorine and organism, which must be ≤0.1mg/1.
Because calcium and magnesium content in raw water is very high, and RO salt-removing rate is about 97%, which may cause deposit of calcium carbonate, magnesium carbonate, bitter salt, etc. on concentrated water side. Deposit adhered on RO membrane surface and may block passage of components and causes pressure difference increase, water output decrease and salt-removing rate decrease, which influence normal running and usage span of RO. So before precision filter, Ion Exchanger is equipped to protect and avoids impurity on RO concentrated water side.

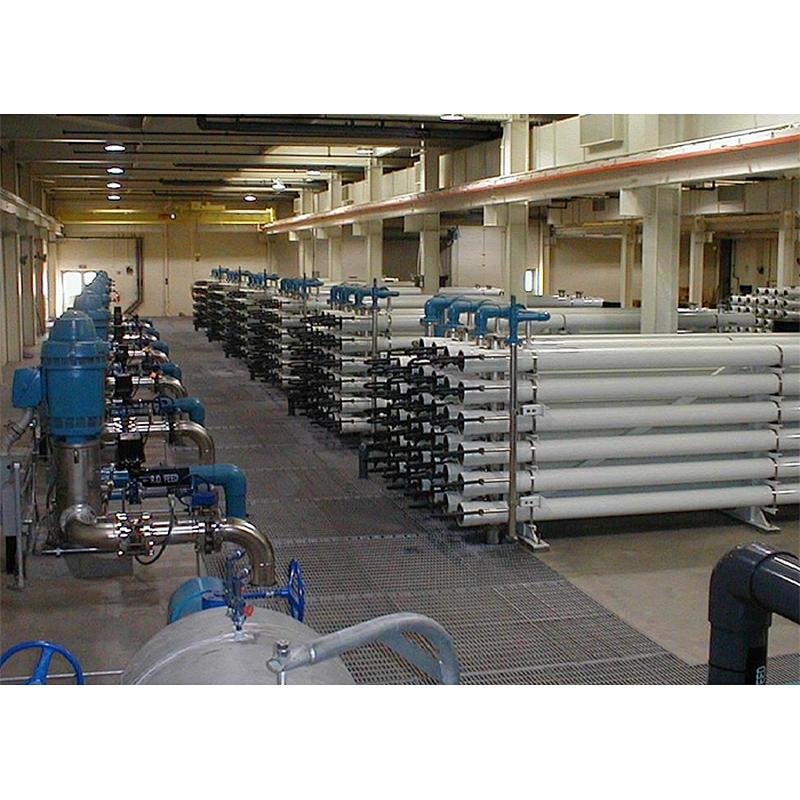

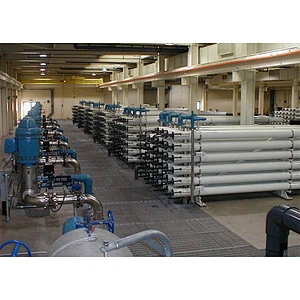

RO System
RO system is composed of high-pressure pump, RO system and chemical cleaning device.
During running, RO membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of RO system. This system configures with membrane compounds and high-pressure pump.
High-pressure pump is the power source of RO system. To RO system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P≤0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and RO system will stop in avoidance of destroying to RO membrane because of water pressure.
RO system pressure control and automatic cleaning are controlled by PLC. RO system can wash surface of RO membrane by low-pressure timely and periodically.
Pre-treatment System
Pre-treatment system is composed of mechanical filter, active carbon filter, Ion Exchanger and precision filter. The water
temperature requires 25±30C.
Flocculator is used for destroying electro-neutral of colloid in water, which ensures raw water can reach to the requirement of Silt Density Index (SDI) ≤ 4. Mechanical filter can remove most of suspension, colloid and grain impurity, which can ensure initial purification of water.
If some of raw water comes from tap water, chlorine content maybe is higher. Low-pressure compound RO membrane has strict limitation to chlorine and organism, which must be ≤0.1mg/1.
Because calcium and magnesium content in raw water is very high, and RO salt-removing rate is about 97%, which may cause deposit of calcium carbonate, magnesium carbonate, bitter salt, etc. on concentrated water side. Deposit adhered on RO membrane surface and may block passage of components and causes pressure difference increase, water output decrease and salt-removing rate decrease, which influence normal running and usage span of RO. So before precision filter, Ion Exchanger is equipped to protect and avoids impurity on RO concentrated water side.
RO System
RO system is composed of high-pressure pump, RO system and chemical cleaning device.
During running, RO membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of RO system. This system configures with membrane compounds and high-pressure pump.
High-pressure pump is the power source of RO system. To RO system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P≤0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and RO system will stop in avoidance of destroying to RO membrane because of water pressure.
RO system pressure control and automatic cleaning are controlled by PLC. RO system can wash surface of RO membrane by low-pressure timely and periodically.
Raw Water Pump 1 set
Model: 4-50
Brand: Nanfang Pump
Brand: Nanfang Pump
Quartz sand filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Overall dimensions: D450×H2000 (mm)
Active carbon filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Overall dimensions: D450×H2000 (mm)
Sodium ion exchanger 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Overall dimensions: D450×H2000 (mm)
Pure water tank
Raw Water Tank
Material: SUS304
Volume: 2m3
Raw Water Tank
Material: SUS304
Volume: 2m3
Precision filter 1 set
The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the filter and widely used in medicine, electrical, food industries.
Working pressure: ≤0.3Mpa
Production capacity: 4T/h
Overall dimensions: D400×H1000 (mm)
Material: SUS304
Working pressure: ≤0.3Mpa
Production capacity: 4T/h
Overall dimensions: D400×H1000 (mm)
Material: SUS304

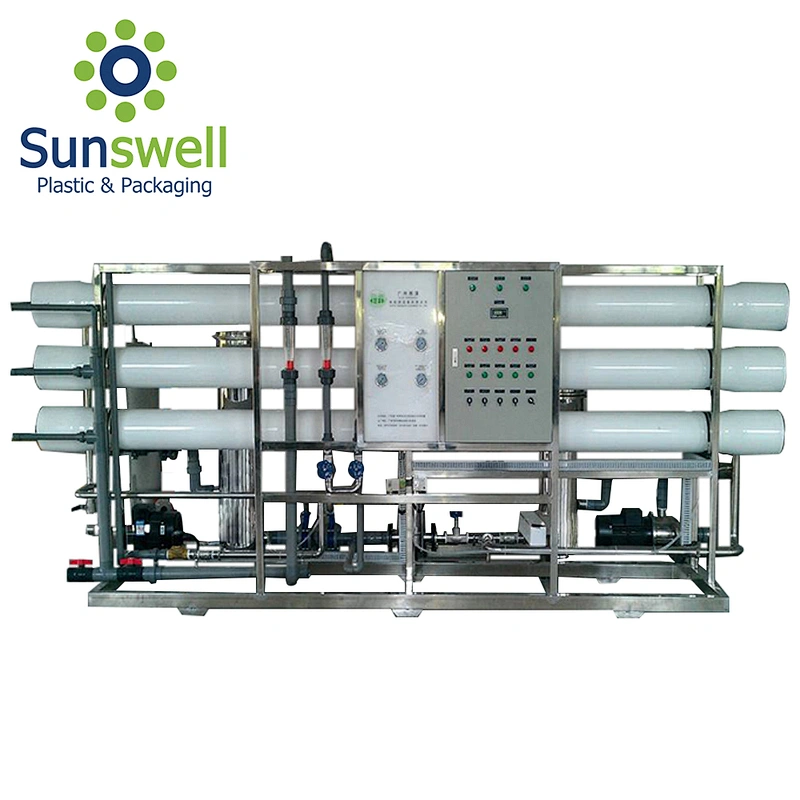

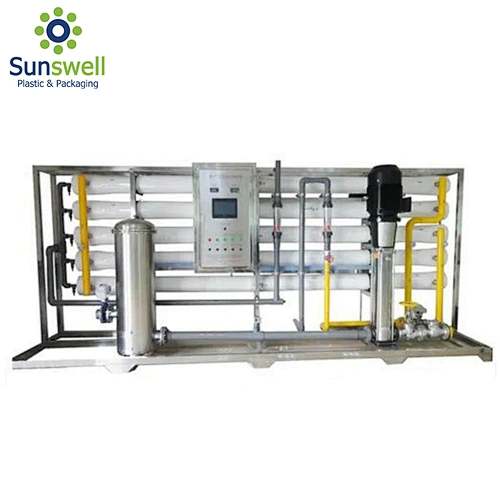

Reverse osmosis 1 set
Capacity: 2T/H, 8 sets 4040 (Hydranautics)
One stage reverse osmosis
Pump: CDLF4-16 (Nanfang)
One stage reverse osmosis
Pump: CDLF4-16 (Nanfang)
Ultraviolet radiation sterilizer 1 set
Working pressure≤0.2 Mpa
Treatment Capacity 2T/H
Overall dimensions: 116×75×65mm
Treatment Capacity 2T/H
Overall dimensions: 116×75×65mm
Ozone generator 1 set
Capacity: 7g
Overall dimensions: 400×320×600mm
Material: Carbon Steel
Overall dimensions: 400×320×600mm
Material: Carbon Steel
Gas-liquid mixing pump 1 set
Model: 25QY-2
Brand: Nanfang Pump
Brand: Nanfang Pump
