- Product name:Filling Line
- Filling material:water/beverage/juice
- Production capacity:2000~40000BPH
- suitable bottle:50-110
- Automatic Grade::Automatic
- Driven Type::Electric
- Voltage::220V, 380V, 400V, 415V, 460V, 3PH
- Dimension(L*W*H)::2780*2080*2700mm
- Certification::CE, ISO, SGS

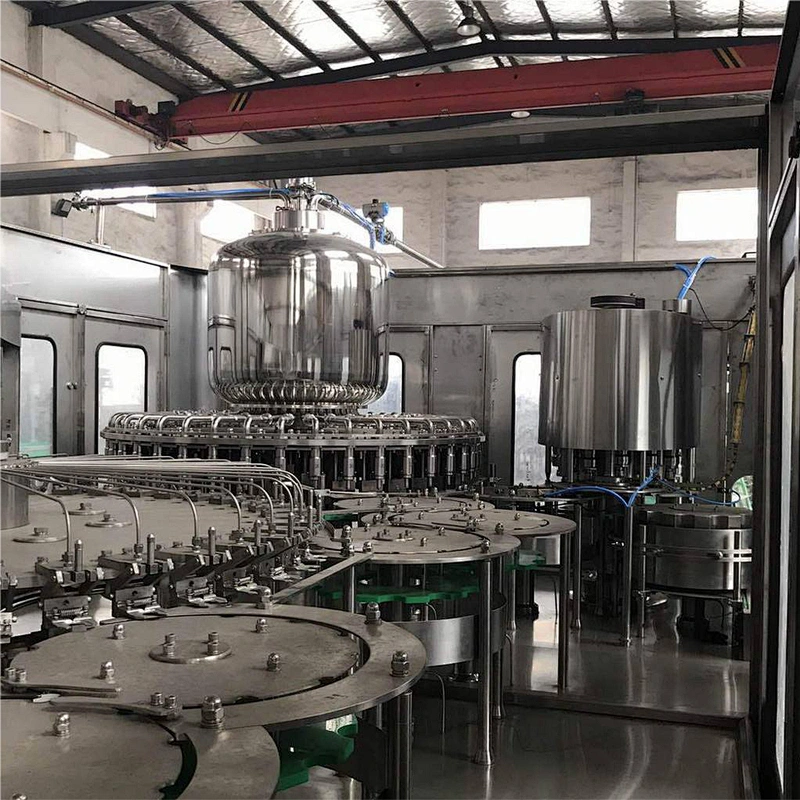

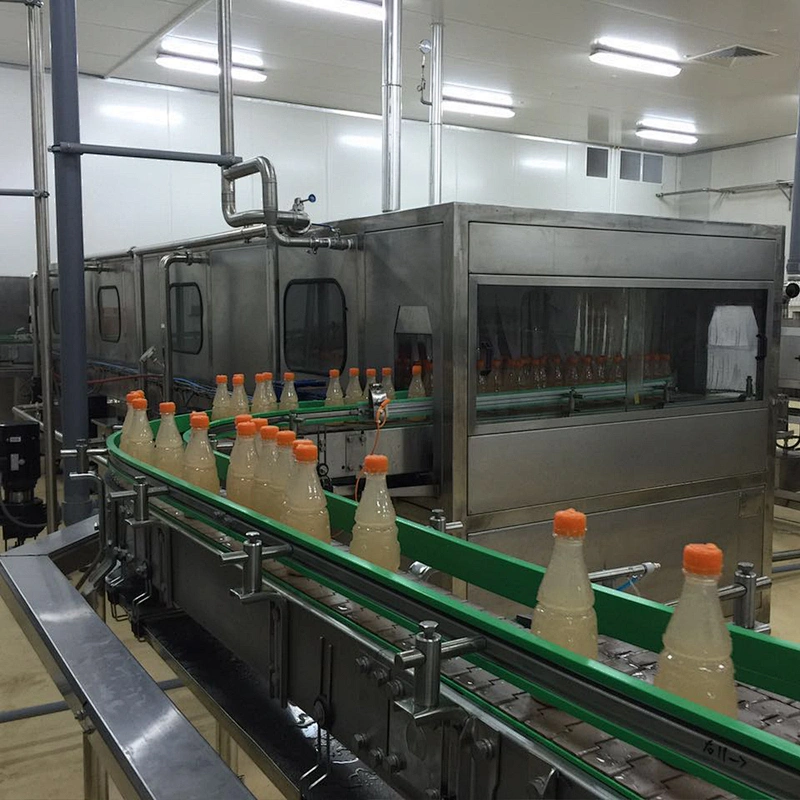

Products Description

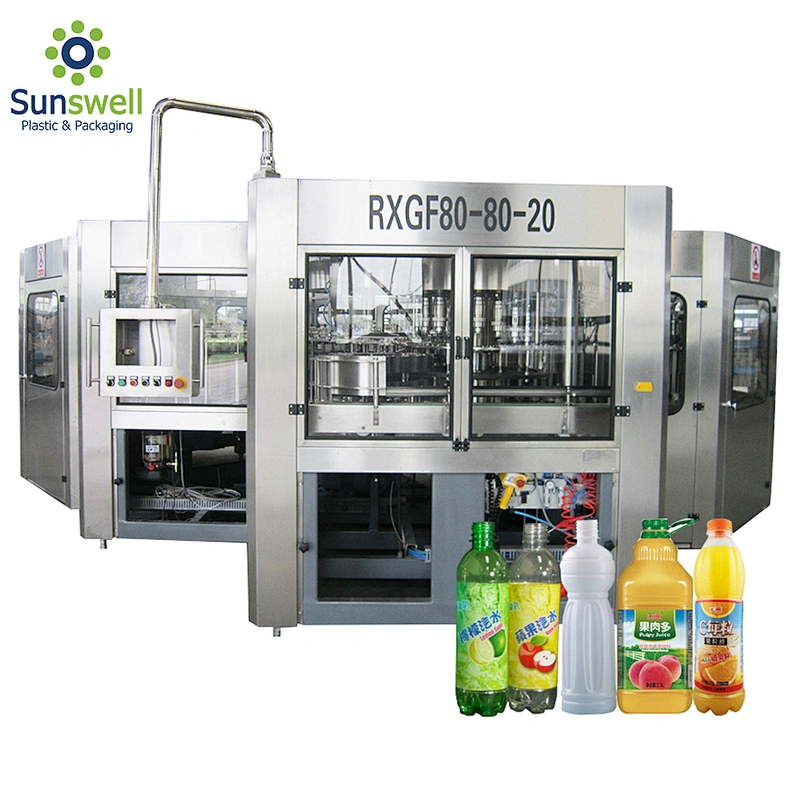

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

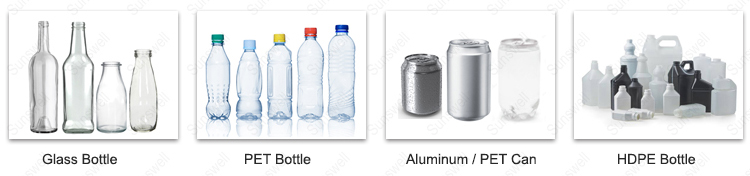

Application :
Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,gingerdrink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava
juice,passion fruit drinks ,papaya juice

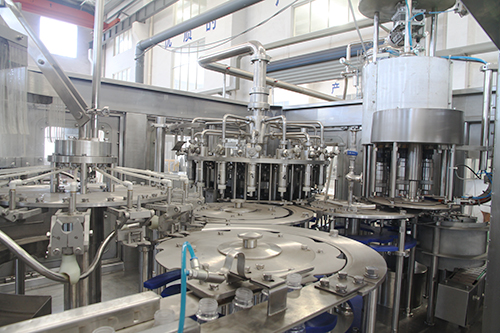

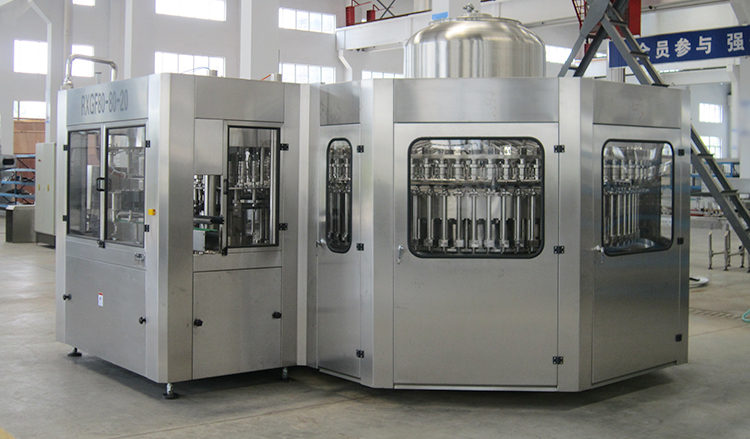

Detailed Image: Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

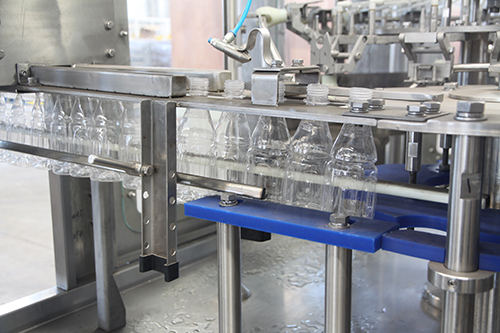

1) Bottle infeed
2) Discharge Starwheel

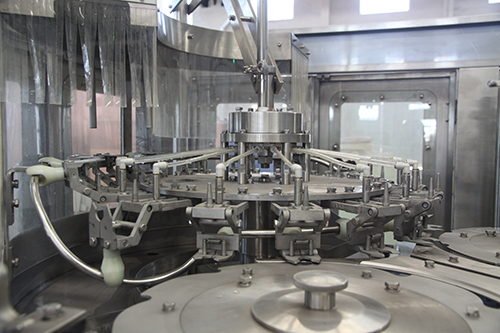

3)Rinser

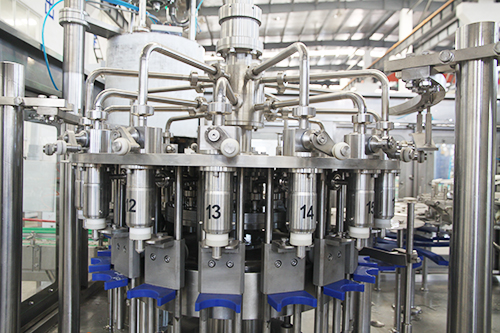

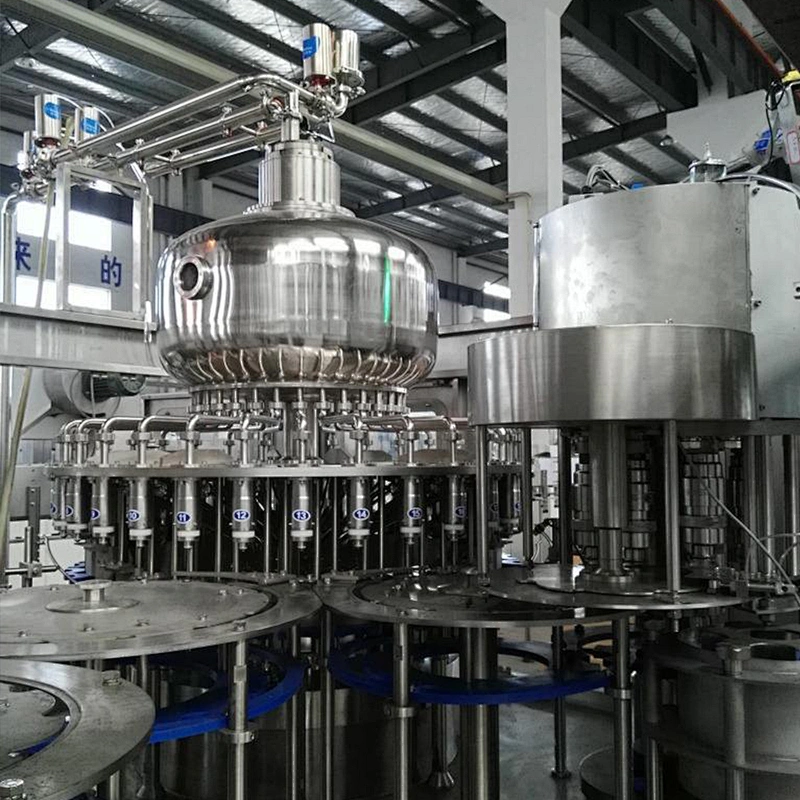

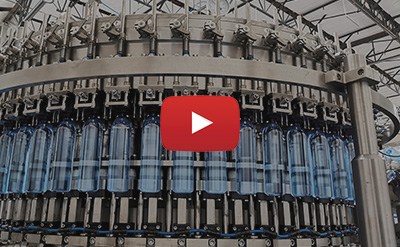

4) Filler

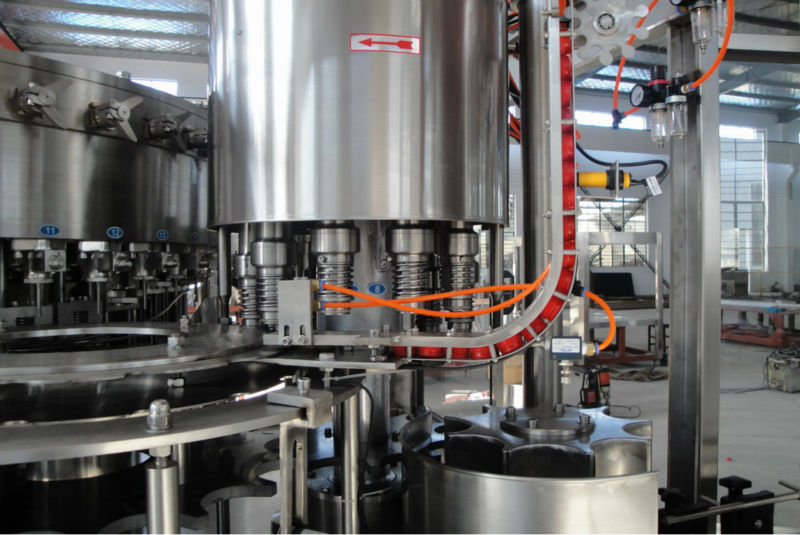

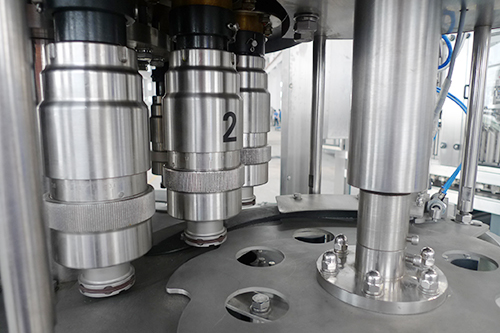

5) Capper

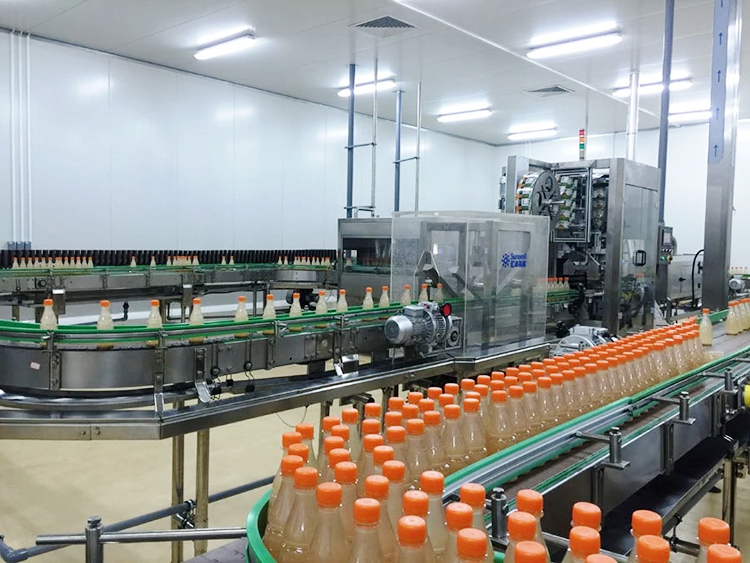

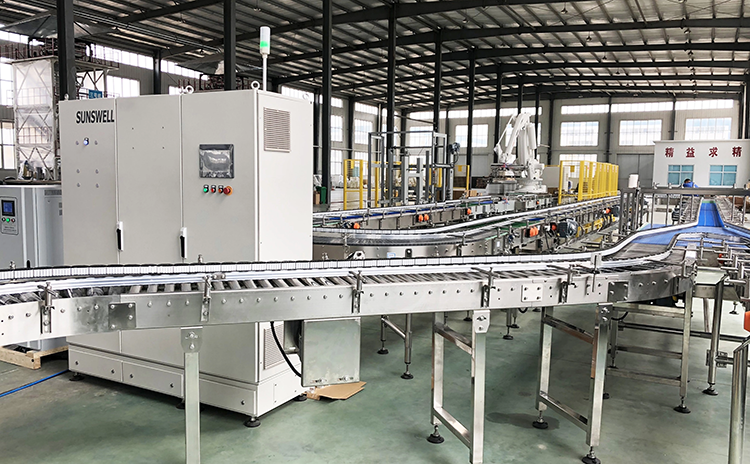

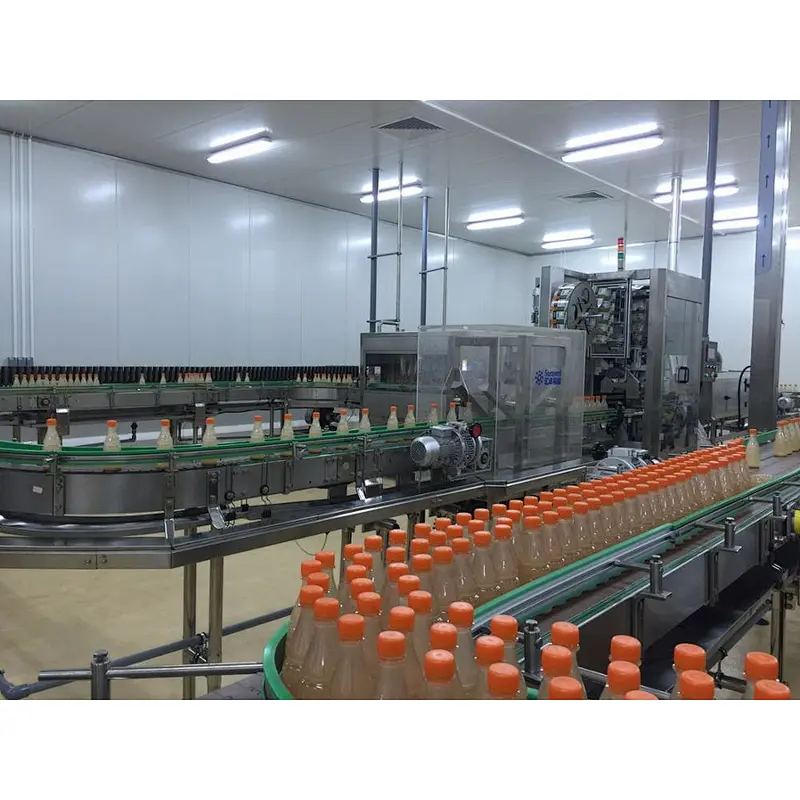

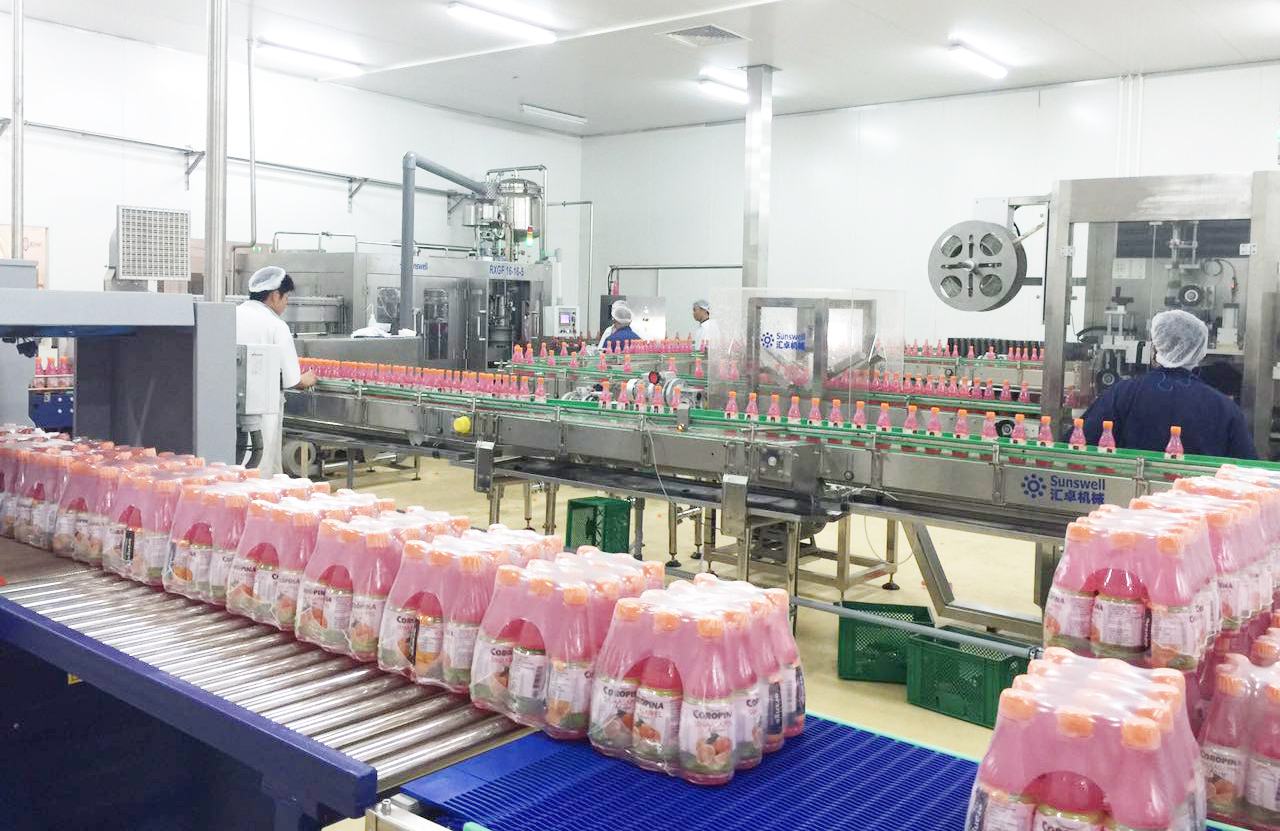

Project picture:
5) Capper
Main components configuration:
1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).
1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).
washing, filling and capping heads Model (RXGF) | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 72-72-15 | |||||||
Production capacity(500ml) (B/H) | 5,000 | 7000 | 10,000 | 15000 | 18000 | 22000 | 24000 | 30000 | |||||||
suitable bottle specification(mm) | φ=50-110=170 330-2250ml | ||||||||||||||
Washing pressure(kg/cm 2 ) | 2-3 | ||||||||||||||
Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw | |||||||
Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1920 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 | 6500×4500 ×2900 | 7680×6640 ×2850 | |||||||
Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 15000 | |||||||
1. Juice preparation system ( sugar melting/dissolve , juice blending tanks, juice sterilize /pasteurizer , homogenizer,CIP)
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )
Any more questions, please feel free to contact us!
